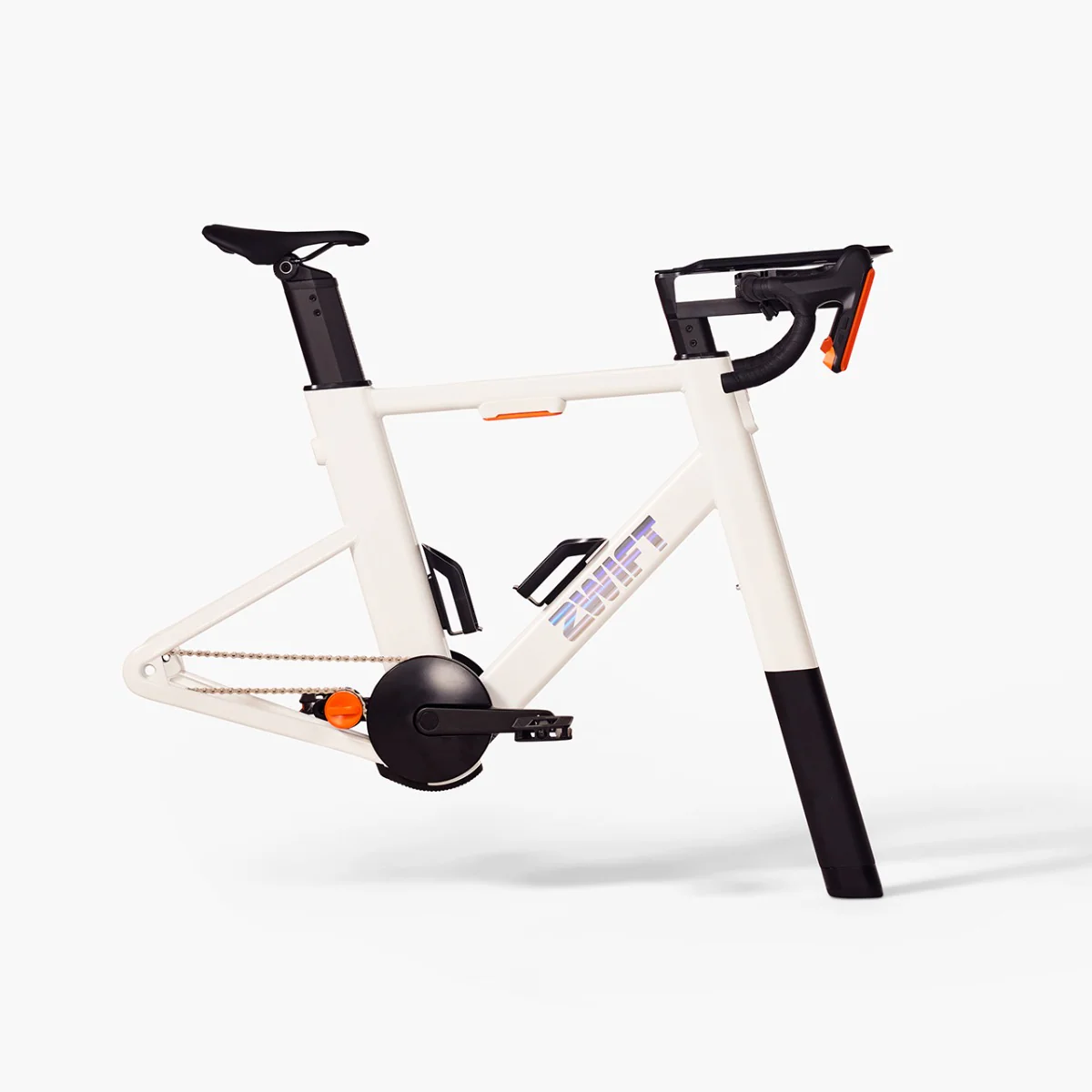

Zwift Ride Smart Frame

Upgrade to Zwift Ride Smart Frame and transform your Zwift Ready or Zwift Compatible KICKR smart trainer into an always-ready, all-in-one smart bike. Built-in handlebar controls Zwift and enables customisable virtual shifting. Zwift Ride Smart Frame is easily adjustable, making it perfect for everyone at home. Keep your outdoor bike ready for the outdoors and upgrade to an all-in-one indoor cycling solution that’s always ready to go.

Features

Quiet & Compact
Zwift Ride Smart Frame is powerful, yet keeps a low profile: it takes up less space than a traditional bike and trainer setup, and can be easily packed away and set back up again if needed.

Simple Setup
Set up the Zwift Ride Smart Frame easily on your own. All you need is the included Frame Key and a compatible smart trainer.

Easily Adjustable
Zwift Ride Smart Frame is easily adjustable for riders between 5’ and 6’ 6”. All it takes to adjust the bike and share the fun is the Frame Key stored in the bike frame.

Effortless Control
Control Zwift easily from your handlebars. Queue workouts, use PowerUps, and send RideOns—all without pausing your ride.

Always Ready
Designed for the home, Zwift Ride Smart Frame is ready to ride whenever you are.

Smooth Shifting
Experience flawless, silent gear shifting with a customisable setup, ensuring you're always in the right gear for any route.

What's Included

ZWIFT RIDE Smart Frame
Zwift Cog

Rider Fit Specs
Rider Fit Range: 152 - 198 cm
Saddle Height Min-Max: 59.9 - 86.5 cm (center bottom bracket to top of saddle)
Stepover Height: 76.4 cm
Max Rider Weight: 120 kg
Crank Length: 170mm

Product Dimensions and Frame Specs
Product Dimensions: 110 cm L x 43.2 cm W
Product Weight: 25.5 kg
Drivetrain: Chain (KMC Z1 narrow 3/32" width)
Pedals: Flat Included (compatible with all standard road and mountain pedals)
Saddle: 160mm W x 245mm L

Additional Handlebar Specs
Handlebar Height Min-Max: 86.3 - 102.4 cm
Handlebar Width: 42 cm (center to center)
Integrated rechargeable controllers with 20 hrs. Per charge
Handlebar Controller Power: Built-in rechargeable lithium-ion battery (1050 mAh)
Handlebar Controller Power requirements: USB-A, 5v, 1A

Compatibility
Compatible with Zwift Cog v1 & Zwift Cog v2. Updated Zwift Cog v2 included with purchase.
Update to latest firmware using manufacturer’s app.
Front Leg Riser Foot included for trainer height alignment

Connectivity
Not compatible with ANT+ dongles
In-game shifting, steering and UI control via handlebars are wirelessly transmitted via Bluetooth
Apple TV users are required to pair through Zwift Companion app as a bridge to address the limited number of Bluetooth connections
