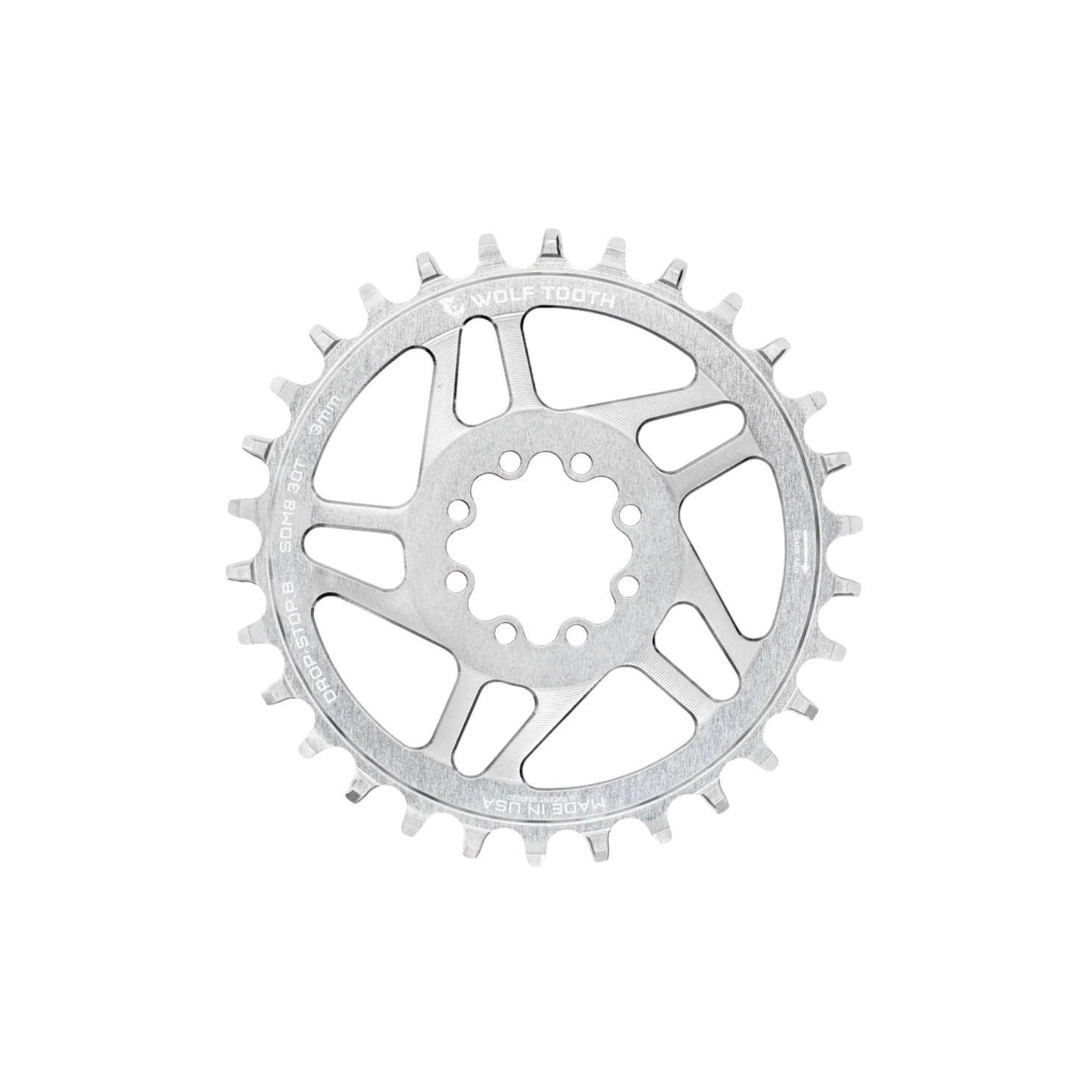

Wolf Tooth Direct Mount Chainrings for SRAM 8-Bolt Mountain Cranks - Raw Silver

Direct Mount Chainrings for SRAM 8-Bolt Mountain Cranks are optimized for SRAM Transmission mountain groupsets and T-Type chains. These are for folks who have SRAM T-Type Transmission groupsets that want a different chainring size beyond stock offering or upgrade to a Made In USA option with an optimized tooth profile for better performance.

The 3mm offset is for SRAM MTB cranks with DUB WIDE spindles that are already at the 55mm chainline required for SRAM T-Type Transmission groupsets. The 0mm offset is for SRAM XX1 SL cranks with DUB spindles to move the chainline from 52mm to 55mm.

Specifications
Material: 7075-T6 aluminum
Included: set of eight custom T20 stainless steel bolts
Made in the USA

Compatibility
Compatibility: Replaces existing chainring and spider or direct-mount chainring for SRAM T-Type Transmission AXS cranksets, SRAM Transmission 70 and 90 cranks, 2025 Cane Creek eeWings Titanium cranks (8-bolt), and other cranks using the 8-bolt standard
Mount Standard: SRAM T-Type Transmission DUB Wide MTB cranksets use the 8-bolt direct-mount standard
Tooth Profile: Wolf Tooth’s patented Drop-Stop® B wide/narrow tooth profile for ultimate chain retention and mud-shedding ability
Offsets Available: 3mm, 0mm
Chainline: 55mm with 3mm offset for DUB Wide MTB; 55mm with 0mm offset for DUB; 52mm with 3mm offset for DUB

Mfr Claimed Weight
30T • 65g  |  32T • 69g
