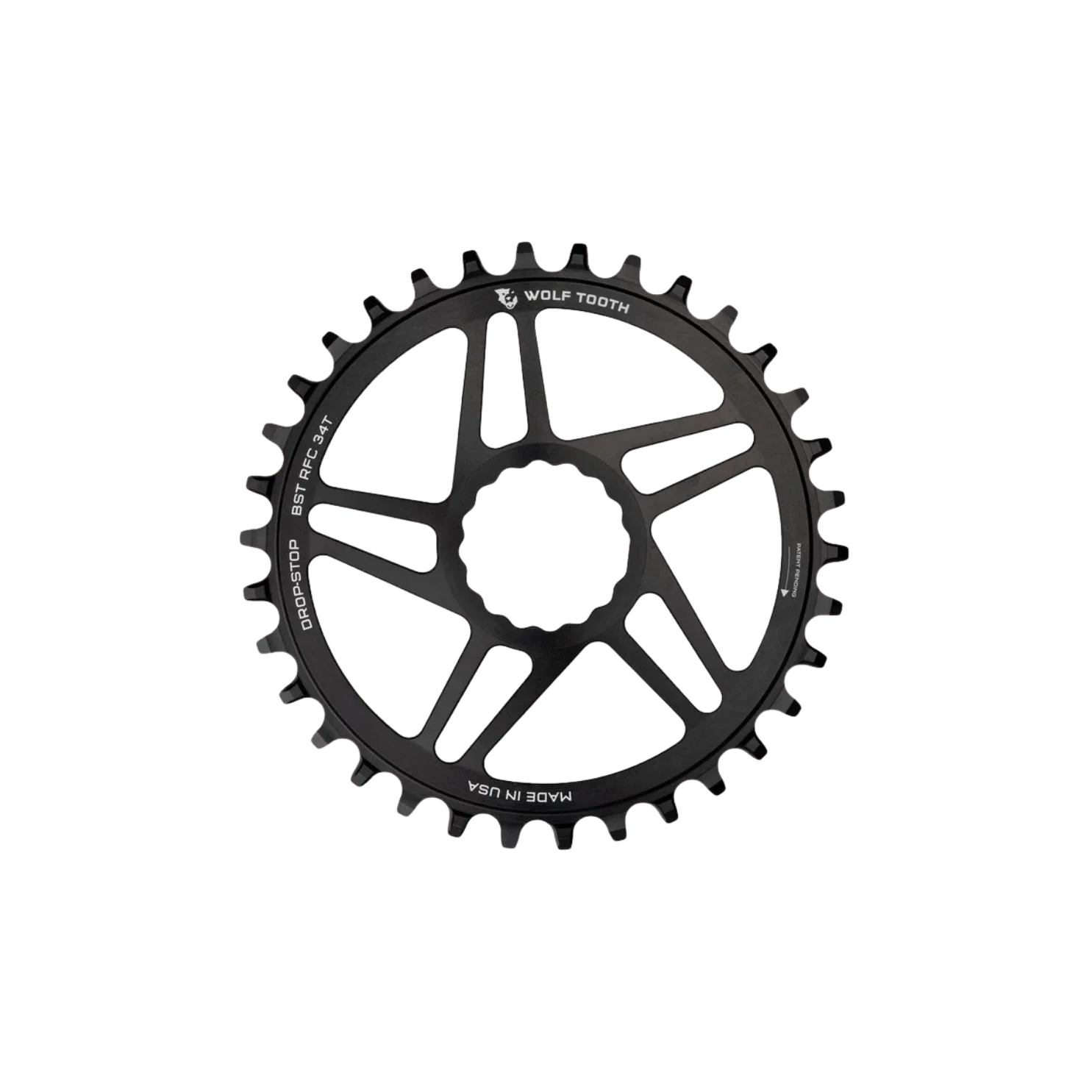

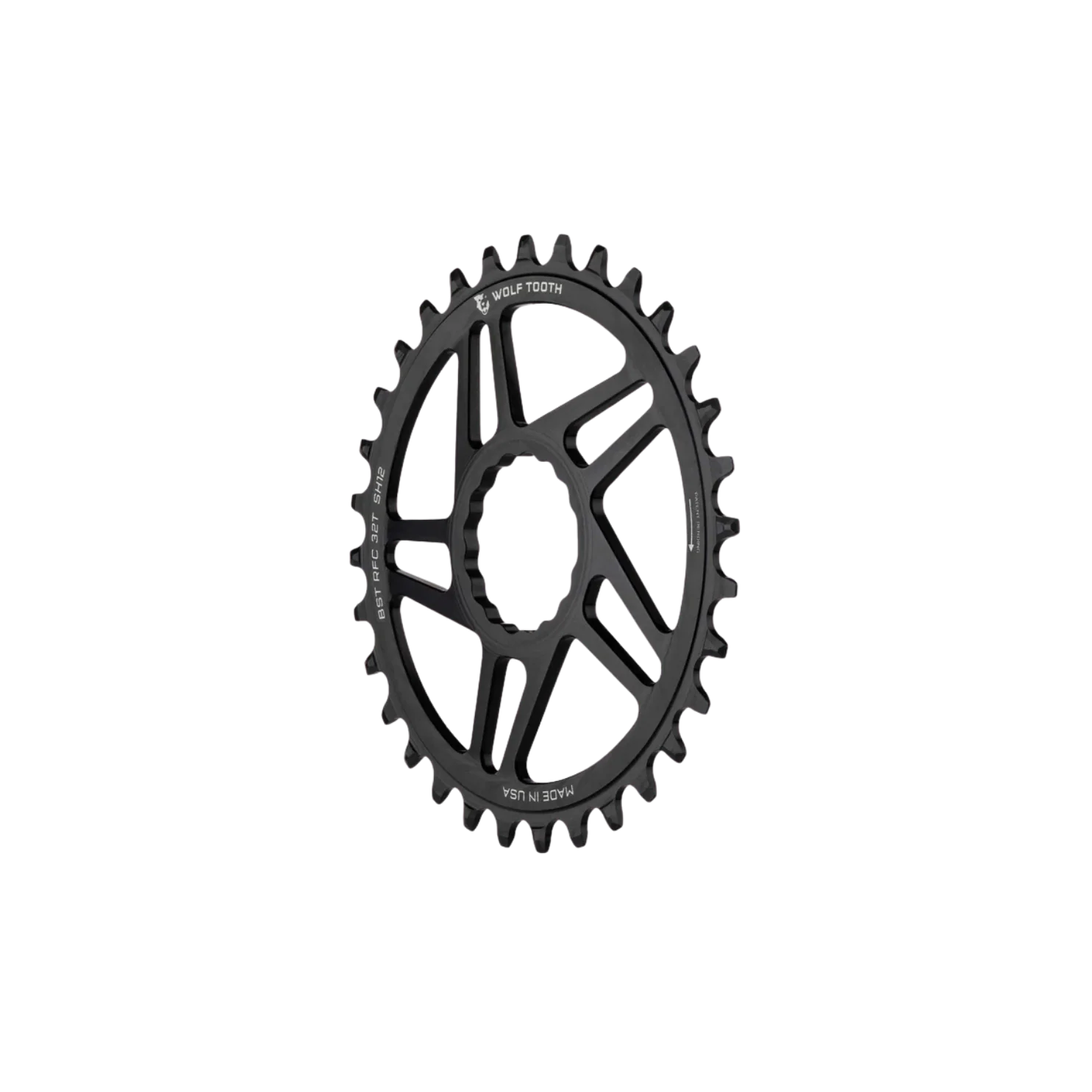

Wolf Tooth Direct Mount Chainrings for Race Face Cinch (3mm Offset)

These chainrings are for Race Face Cinch cranks such as Turbine, Next SL, Sixc & Aeffect. The Wolf Tooth Cinch chainrings feature our patented Drop-Stop® tooth profiles for the best wear life, chain retention and mud clearance. We have optimized tooth profiles for SRAM T-Type Transmission, Shimano Hyperglide+, and all 12, 11, 10, and 9-speed chains.

Specifications
Material: 7075-T6 aluminum
Made in the USA

Compatibility
Any Race Face Cinch™ system crankset
SRAM Transmission with Race Face Cinch cranksets using a Boost 136/137mm spindle: Use Cinch direct-mount 0mm offset chainring
Super Boost 151mm spindle: Use Cinch direct-mount 3mm offset chainring
Tooth Profile: Wolf Tooth’s patented Drop-Stop® wide/narrow tooth profile for ultimate chain retention and mud-shedding ability
Offsets Available: Standard (142mm rear hub spacing)—6mm; Boost (148mm hub spacing)—3mm; Boost for T-Type Transmission (148mm hub spacing with 55mm chainline)—0mm
Super Boost with standard drivetrain or Transmission: Use 3mm offset chainring
9-speed drivetrain: Use a 10-speed chain for better fit and chain retention
Chainline: Standard—49mm for 28–34t, 51mm for 36t (for additional chainstay clearance); Boost—52mm; Boost T-Type Transmission—55mm

Mfr Claimed Weight
28t • 54g  | 30t • 58g  | 32t • 63g  | 34t • 69g | 36t • 75g
