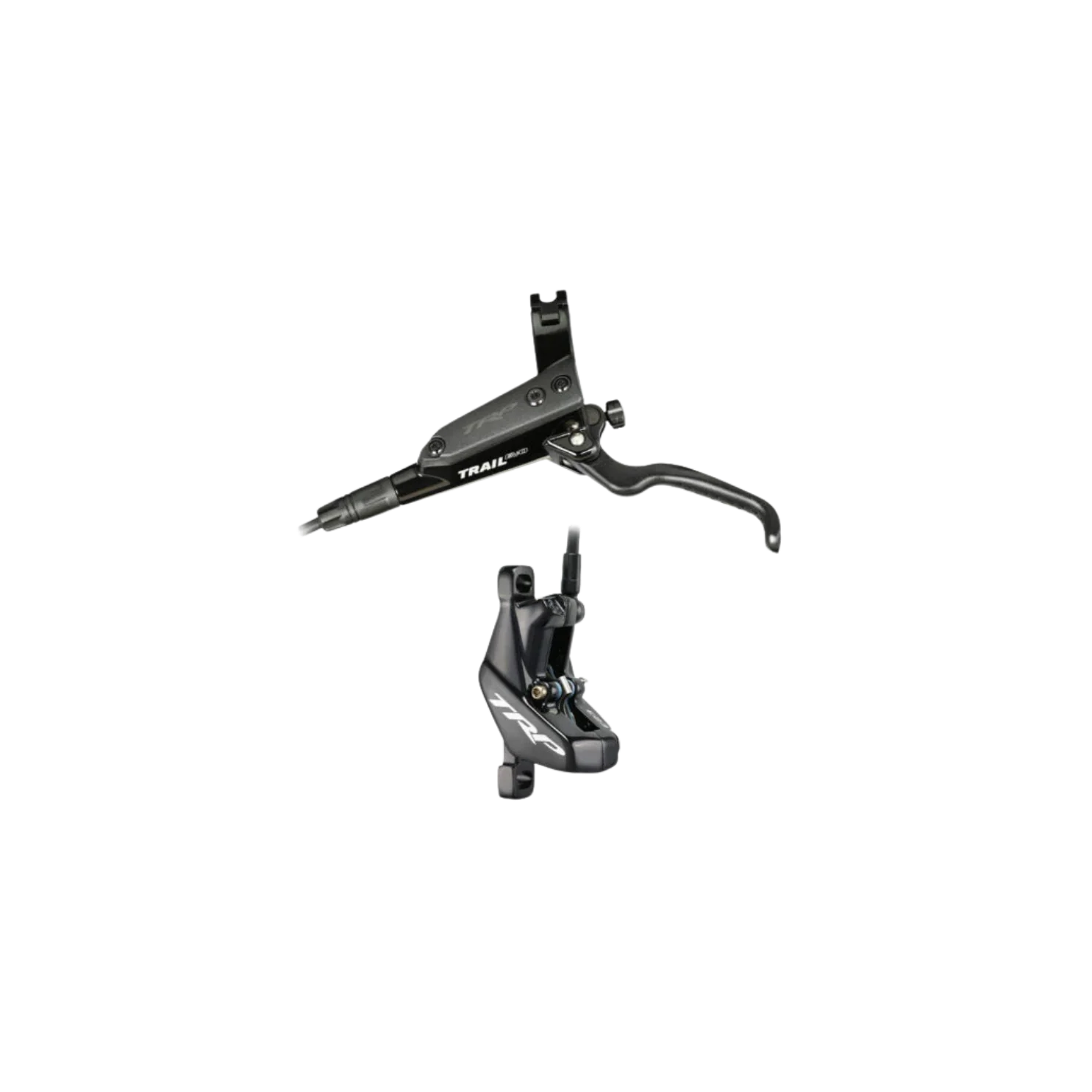

TRP Trail EVO Disc Brake Set

Working with the world’s best downhill riders has allowed us to develop top-level braking performance. When designing the all-new Trail EVO we wanted to create a brake system for the specific needs of modern mountain bikes. With the added speed and potentially weight from an electric motor and battery, these bikes will typically generate more heat than a typical mountain bike. Our Trail EVO system combines the latest technology in braking with existing technology developed on the World Cup Downhill race circuit. The result is not a rebranded downhill brake, but rather a system that will meet the unique needs of today’s mountain bikes.

Features
Ergonomic lever blade
10mm internal brake lever piston
Adjustable lever reach
I-Spec II compatible
I-Spec EV adapter option
TRP and MMX shifter adapter available
Hinged lever clamp
Matte black finish
Optimized hydraulic flow
Stainless steel pistons
5mm brake hose
Made for 2.3mm thick rotors
Top loading pad design
New resin brake pad
Banjo hose connection
Newly formulated mineral oil

Specifications
4-Piston caliper
Intended rotor thickness: 2.3mm

Mfr Claimed Weight
307g (Front without rotor and adapter)
