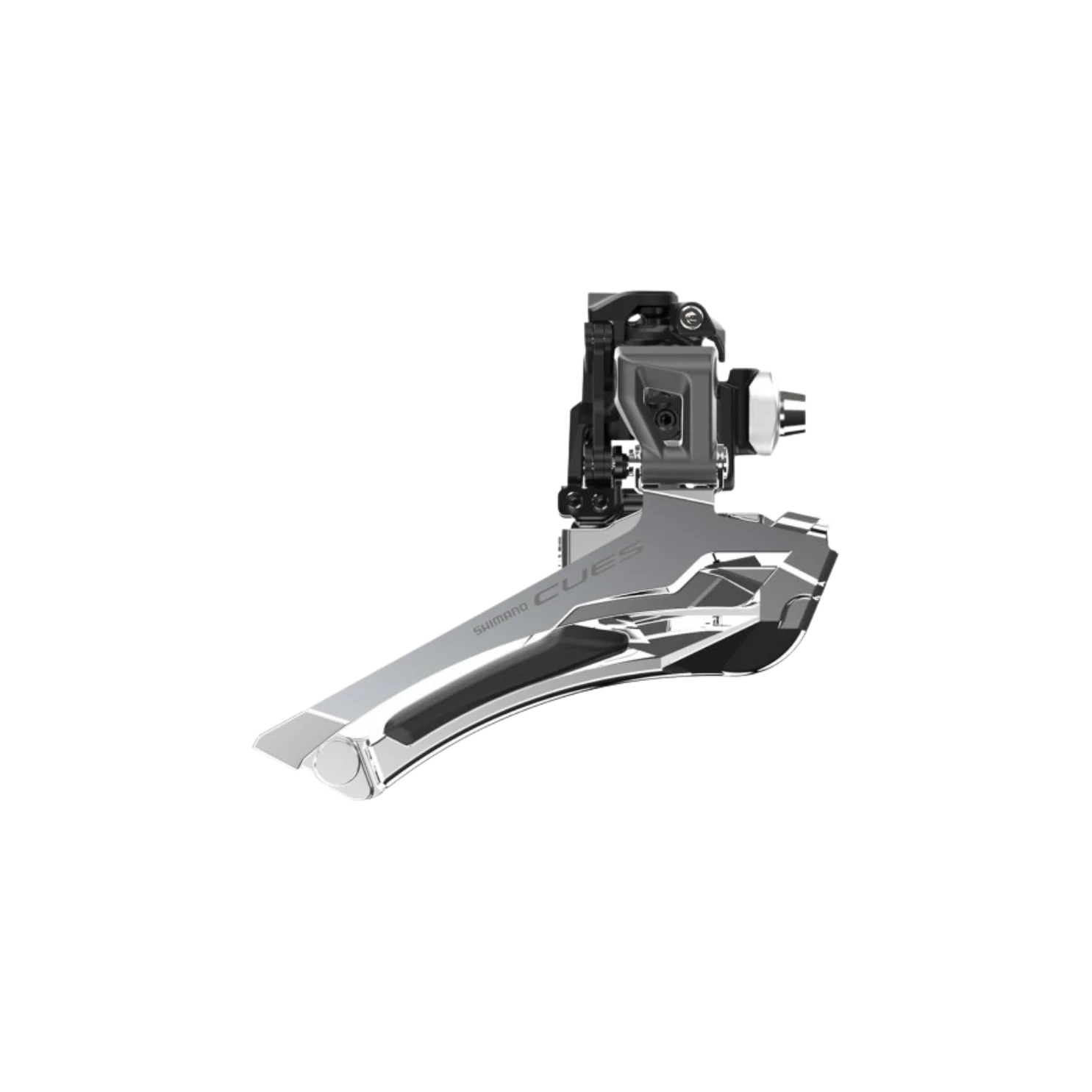

Shimano CUES FD-U6030 Braze On Front Derailleur 9/10 Speed

The FD-U6030 front derailleur of the Shimano CUES series was developed for harmonious interaction with road bike handlebars and accordingly with combined brake/shift levers (STI). The "Toggle Link" construction of the "Down Swing" front derailleur for 2x10-speed and 2x9-speed drivetrains not only enables smoother gear changes, but also a consistent and natural shifting behavior. And while the chain line, which has been moved outwards by 2.5 mm, contributes to greater tire clearance, an integrated cable tensioner ensures uncomplicated adjustability.

Compatibility
Brake/shift lever: ST-U6030 / ST-U3030
Crankset: FC-U6030-2 / FC-U6040-2
Rear derailleur: RD-U6020-10 (10s) / RD-U4020 (9s) / RD-U3020 (9s)
Chain: CN-LG500 / CN-HG901-11 / CN-HG701-11 / CN-HG601-11

Specifications
Activity: cycling
Usage (bikesport): road bike / cyclocross / allroad / gravel
Shifting system (manufacturer): Shimano
Number of gears – front: 2
Number of gears – rear: 9 / 10
Shifting type: chain – mechanical
Front derailleur version: brazed-on
Chain line: 47 mm
Front derailleur max. teeth: 50
Cable pull: down pull
Front derailleur capacity: 16
Chain stay angle: 62–66°
Model year: 2025

Mfr Claimed Weight
TBC
