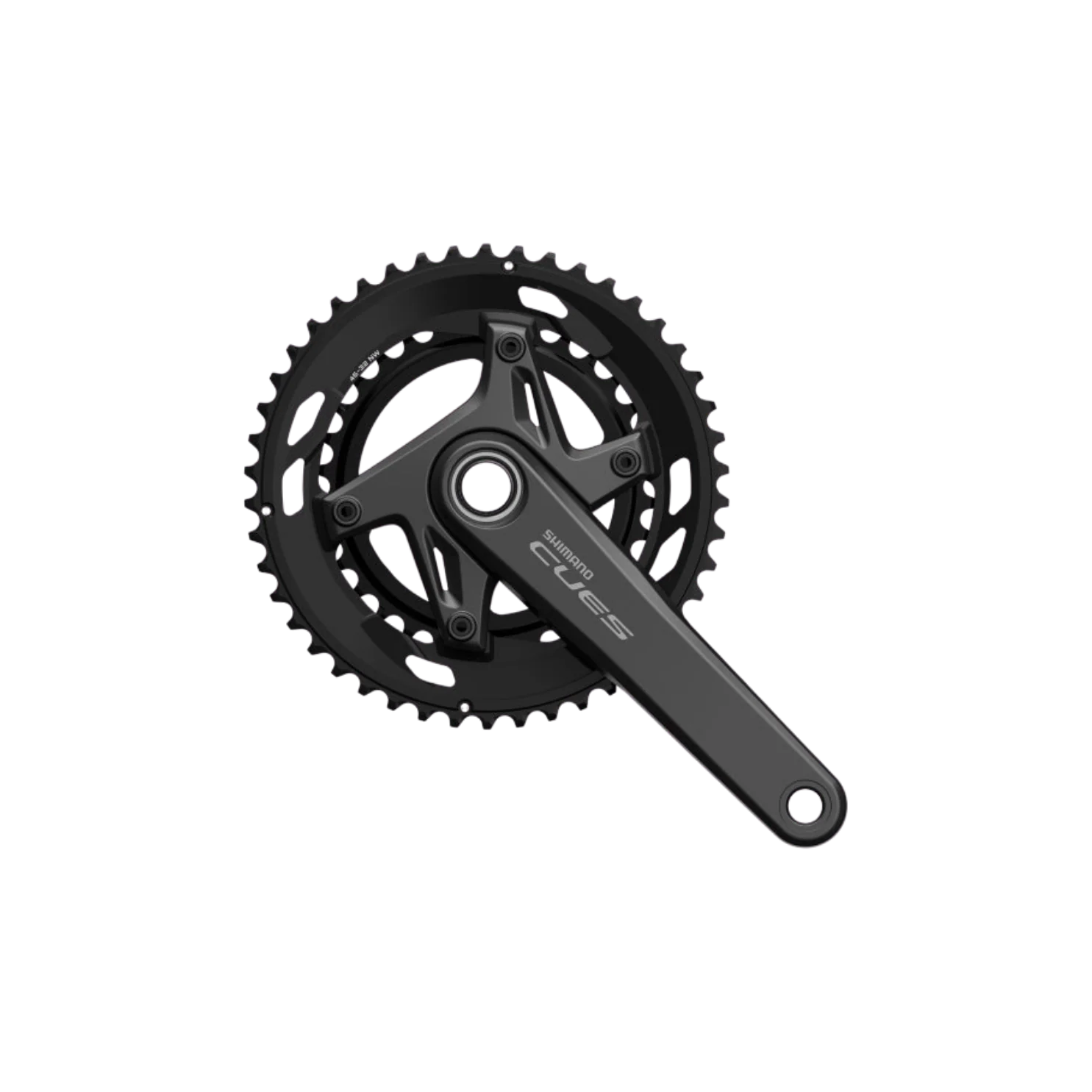

Shimano CUES FC-U6030-2 Crankset 9/10 Speed

The 2-speed version of the FC-U6030 crank from the Shimano CUES series was designed for reliable performance and a harmonious pedaling feel in road bike as well as gravel use. The two-piece construction improves stiffness without unnecessarily increasing the weight. The result benefits not only efficient power transmission, but also riding enjoyment.

Features
Crank arms, spider: aluminum (painted)
Chainring (large): aluminum (anodized)
Chainring (small): steel (painted)
Axle: steel (plated)

Compatibility
Front derailleur: FD-U6030
Chain: CN-HG901-11 / CN-HG701-11 / CN-HG601-11 / CN-LG500
Bottom bracket (thread type): BB-RS501 / BB-RS500 / BB-R9100 / SM-BBR60 / SM-BB6700 / SM-BB5700
Bottom bracket (press fit): BB-RS500-PB / SM-BB92-41B / SM-BB72-41B / SM-BB71-41B
Rear wheel (over locknut dimension): 135 mm (QR, nut type) / 142 mm (thru axle)

Specifications
Activity: cycling
Material: aluminium
Usage (bikesport): road bike / cyclocross / allroad / gravel
Number of gears – front: 2
Number of gears – rear: 9 / 10
Bottom bracket axle profile: 24 mm hollow shaft
Bottom bracket case width: 68 mm / 70 mm
Chainring version: round
Chainring mount: conventional
Chain line: 47 mm
Q-factor: 152 mm
Model year: 2025
Collection: full year
Color: black

Mfr Claimed Weight
TBC
