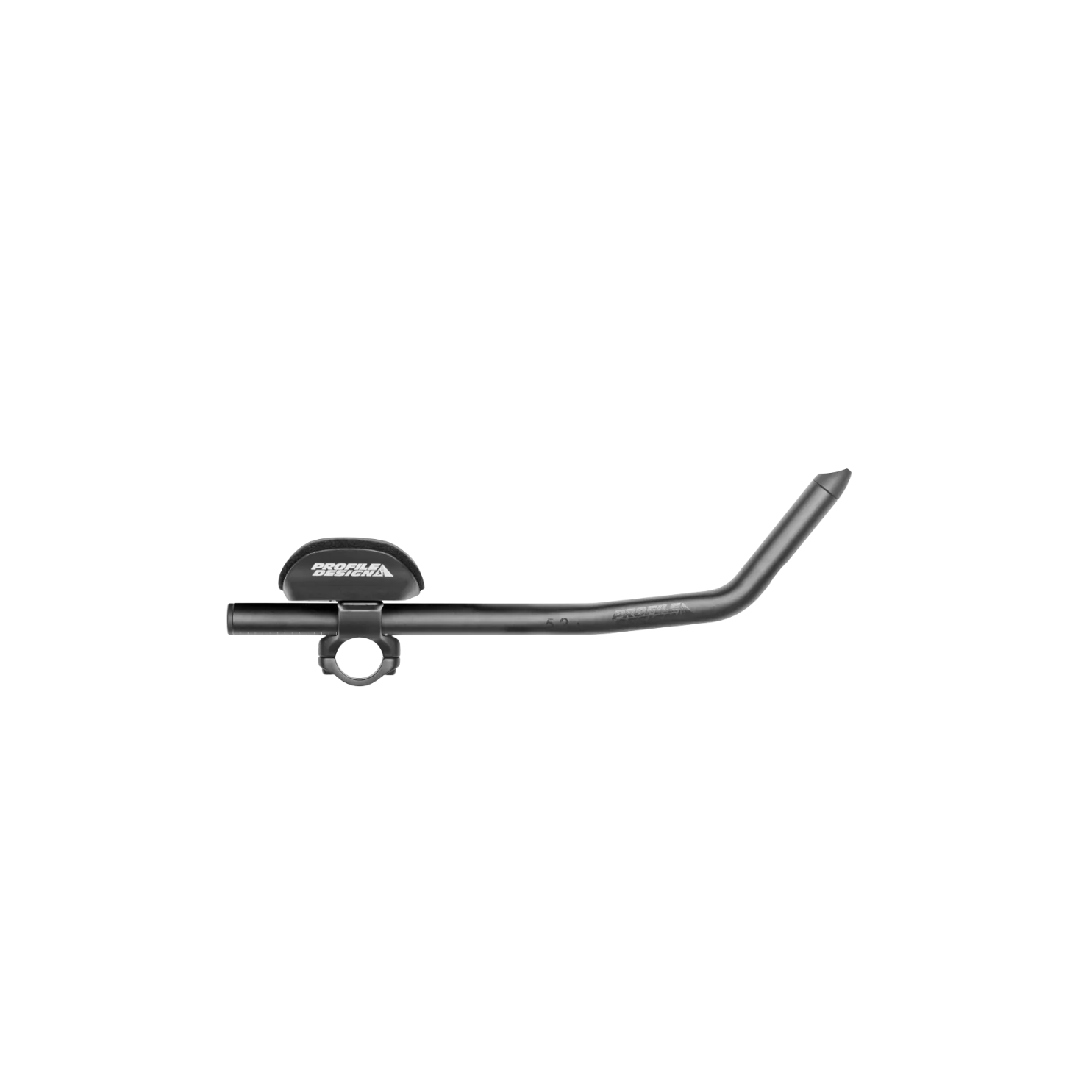

Profile Design Sonic Ergo 52a

The Sonic bracket offers an extensive fit range, low weight and easy adjustment along with minimal frontal area. Combining this with the Ergo armrest creates an aerobar that will aid most riders in optimising their position for both speed and comfort.

The 52A is one of the newest versions of our reliable aluminium extension range.

Specifications
Bracket: Sonic
Clamp Diameter: 31.8mm (26.0 w/Shims)
Armrest: Ergo / 10mm Pads
Armrest Width: 124mm to 290mm in 18.5mm steps (with Extensions at 100mm)
Armrest Offset: -70mm to -17.5mm in 7.5mm steps
Armrest Stack: Minimum 60mm, compatible with existing risers adding up to 130mm stack (70mm of spacers added)
Construction: 6061-T6 aluminum, pre-drilled for bar-end shifter cable routing
Extension Length: 400mm
Extension Angle: 52 Degrees
Extension Rise: 87mm (bottom to top)
Extension Offset: 15mm total
Outer Diameter: 22.2mm
Inner Diameter: 19.2mm
Shifter Compatibility: Electronic or Mechanical
Color: Anodized Matte Black

Mfr Claimed Weight
564g
