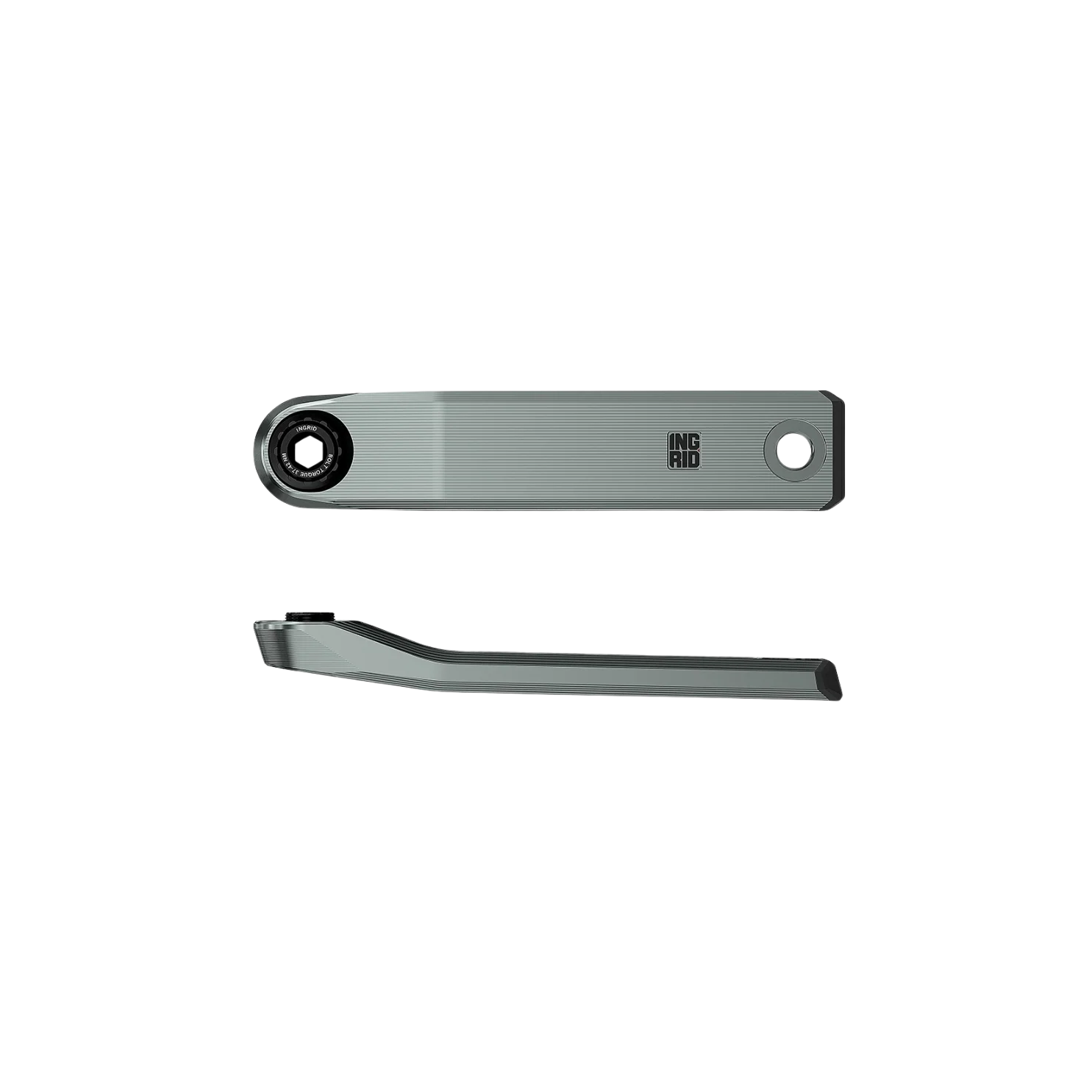

INGRID X Crankset - Titanium

X for cross country but even for a cross-sectoral experience from gravel to trail riding. This is the new alloy crankset in our way for the modern off road bikes.
Sister of the R2 type, it is born to have lightness (as much as it’s possible) and simplicityAfter some month of iteration between shapes and FEM, we reached this new “radical as clean” and definitive structure for this new crankset: 2 drilled “tubes” at sides and a machined matrix for a perfect stifness/weight ratio in aluminum cnc’d cranksets.

Compatible with any of our chainrings and spindles.

Specifications
Crank length: S (166.25) | M (170) | L (173.75)

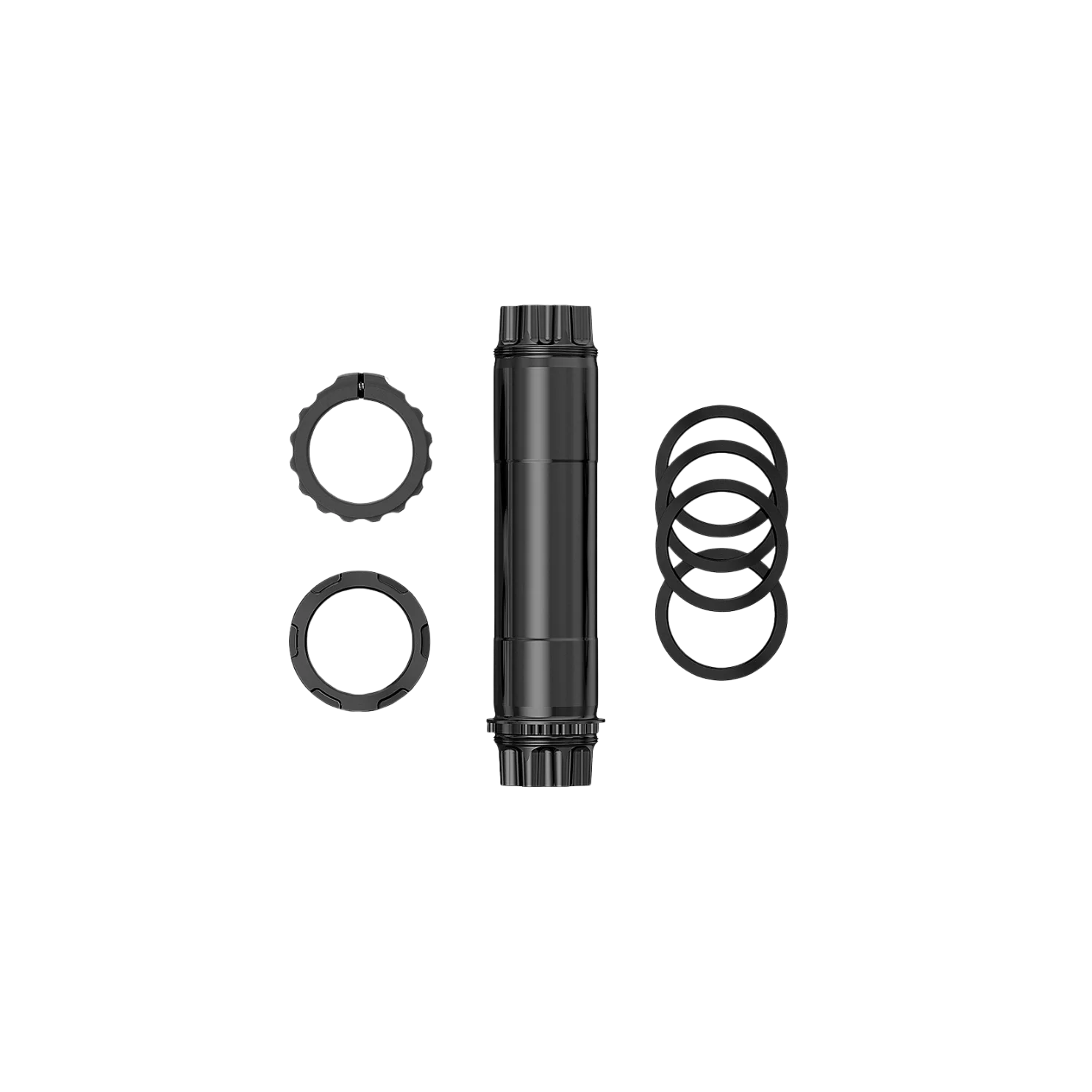

Spindle: 30 mm
Chainrings: All INGRID chainrings and spider | SRM Origin PM (with dedicated spindle)
Chain compatibility: 11s, 12s, 13s (Campagnolo Ekar, SRAM Flattop)
K-factor: 91.5 mm (L131) | 96.5 mm (L136) | 101.5 mm (L141)
Q-factor: 163 mm (L131) | 168 mm (L136) | 173 mm (L141)
Chainline: 49.5 mm (L131) | 52 mm (L136) | 54.5 mm (L141)
Chainline (aero chainrings): 47.5 mm (L131) | 50 mm (L136) | 52.5 mm (L141)
Color: Raw (no finish) | Black | Titanium | Special colors

Mfr Claimed Weight
480 g (M cranks, L131 spindle, without chainring)
