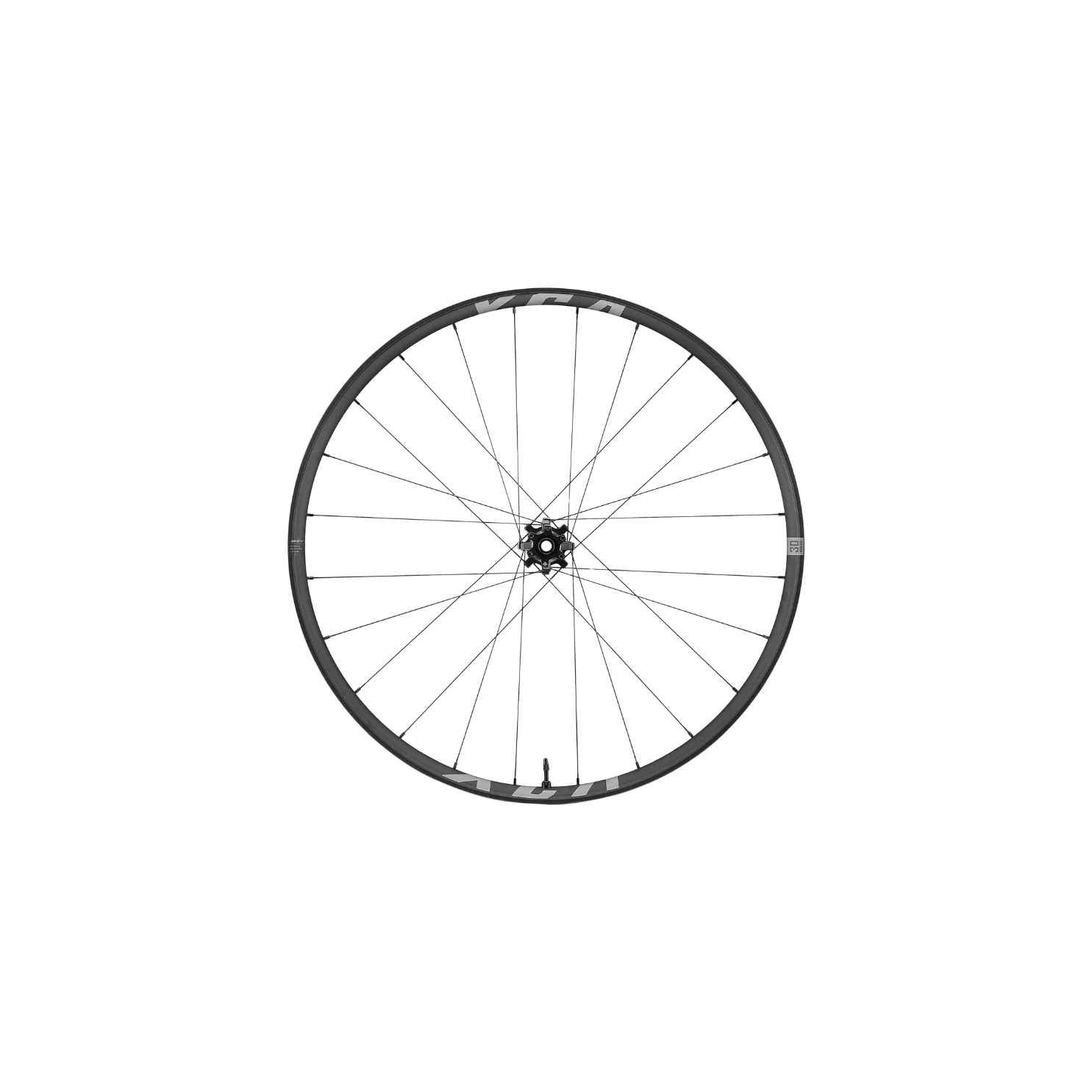

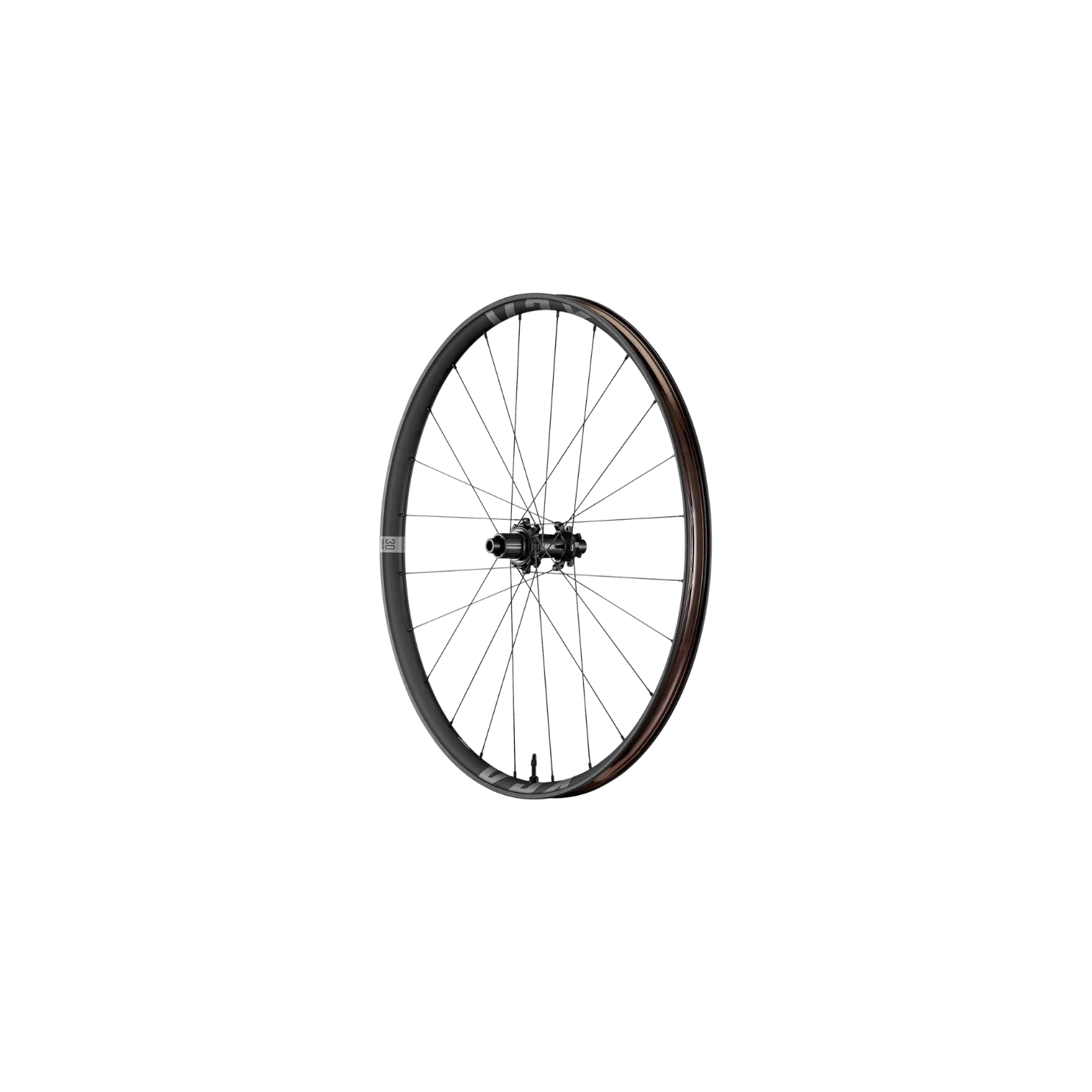

Giant XCA Disc Tubeless Wheelset

The XCA WheelSystem blends alloy strength with XC speed. With DBL technology, Wide Guard protection, and a precision helical ratchet hub, it delivers race-level performance with everyday reliability. Whether sprinting for position or powering through rock gardens, XCA gives you greater control and fast, efficient acceleration everywhere you ride.

Features
Dynamic Balanced Lacing (DBL): Enlarged hub flange boosts spoke bracing angles, increasing lateral, torsional, and transmission stiffness for more efficient power transfer and a planted ride feel.
Helical-Bevel Ratchet Drive System: A 10° helical engagement between hub and ratchet rings ensures efficient, consistent power transfer with reduced stress on components, while the 120-tooth ratchet delivers rapid 3° engagement for immediate response and precise power delivery.
Ratchet Wave Spring: Maintains even pressure between ratchet rings for consistent engagement and improved rolling efficiency.
Wide Guard Technology: Rounded-edge 5mm sidewalls reduce pinch flats and enhance rim impact protection.
30mm Inner Rim Width: Allows lower tyre pressures for improved traction and control.

Specifications

Material: Alloy
Rim Type: Hookless
Tubeless: Giant Tubeless System (rim tape and valve kit included)
Suggested Tyre Size: 2.2–2.6”
Rim Height: 21mm
Rim Inner Width: 30mm
ETRTO: 622x30
Front Hub: Alloy, 6-bolt
Rear Hub: Alloy, 120T Helical-Bevel Ratchet Driver, 6-bolt
Hub Compatibility: Shimano HG / MS, SRAM XD
Bearing: Sealed Cartridge
Front Axle: 110x15 Thru Axle
Rear Axle: 148x12 Thru Axle
Front Spokes: Sapim Laser
Front Lacing: 24H, DBL, Straight Pull
Rear Spokes: Sapim Laser
Rear Lacing: 24H, DBL, Straight Pull
Nipple Type: Sapim Double Square
Warranty: 2 Years

Mfr Claimed Weight
Pair Weight: 1786g (Shimano MS), 1783g (SRAM XD)
Front Weight: 842g (with tape/valve)
Rear Weight: 944g (Shimano MS), 941g (SRAM XD)
