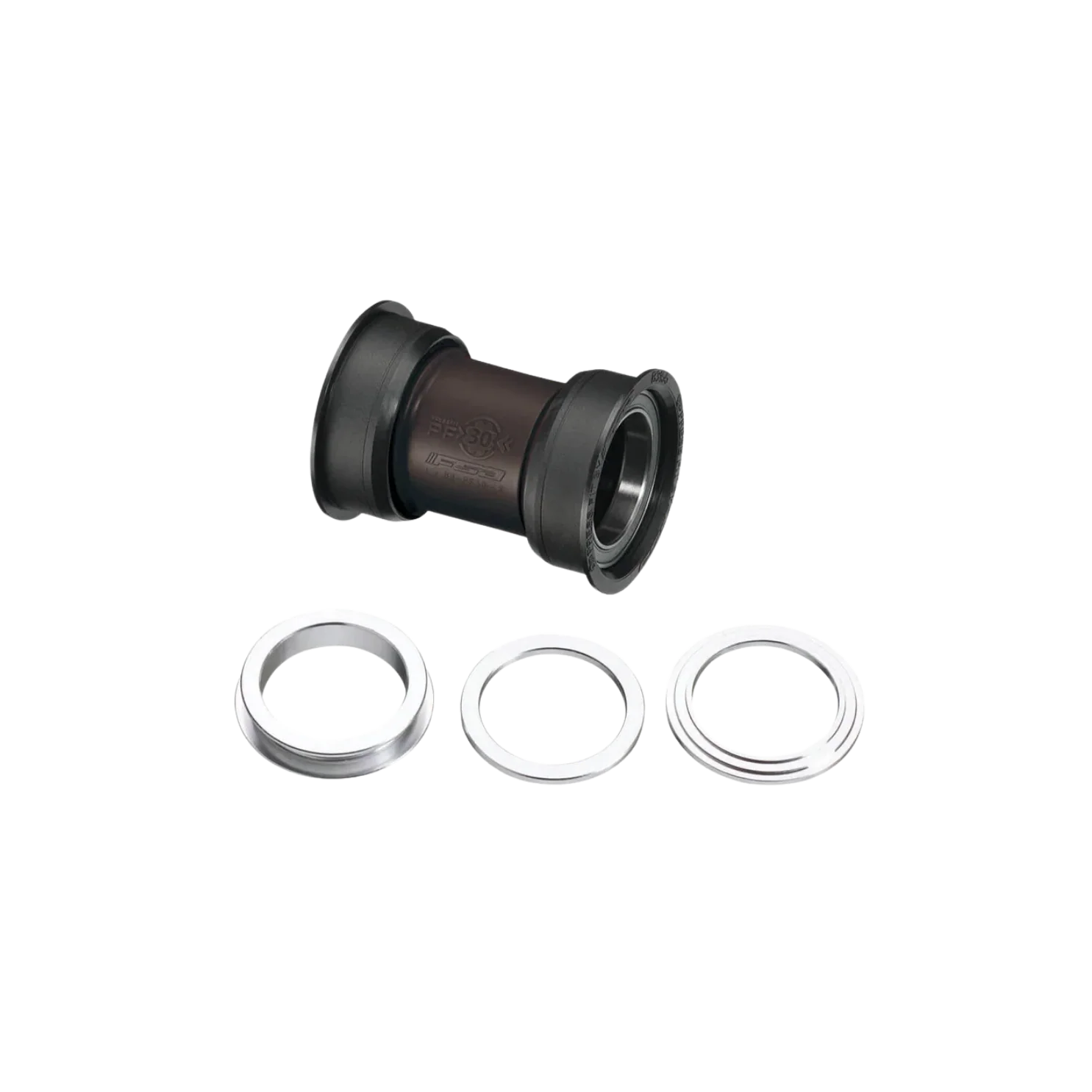

FSA BB-PF30 MTB Bottom Bracket

The PF 30 design uses BB30 size bearings preinstalled in bearing cups. The bearing and cup are pressed into the PF30 bottom bracket shell. Because PF30 uses the same size bearing as a BB30, the cup material increases the bottom bracket shell to 46mm diameter and uses the same diameter spindle. Designed with clearance to allow internal routing of wiring for Di2 or other electronic shifting systems.

Specifications
Compatibility: SL-K, Afterburner, V-Drive, Comet, Gravity Light BB30 cranksets
Bearing: Chrome Steel BB30 cartridge
Di2 Compatibility: Shimano Di2 wiring compatible
Cups: Nylon
Included: Wave spring, bearing shield, spacer, nylon adjustment washers
Use: MTB

Mfr Claimed Weight
TBC
