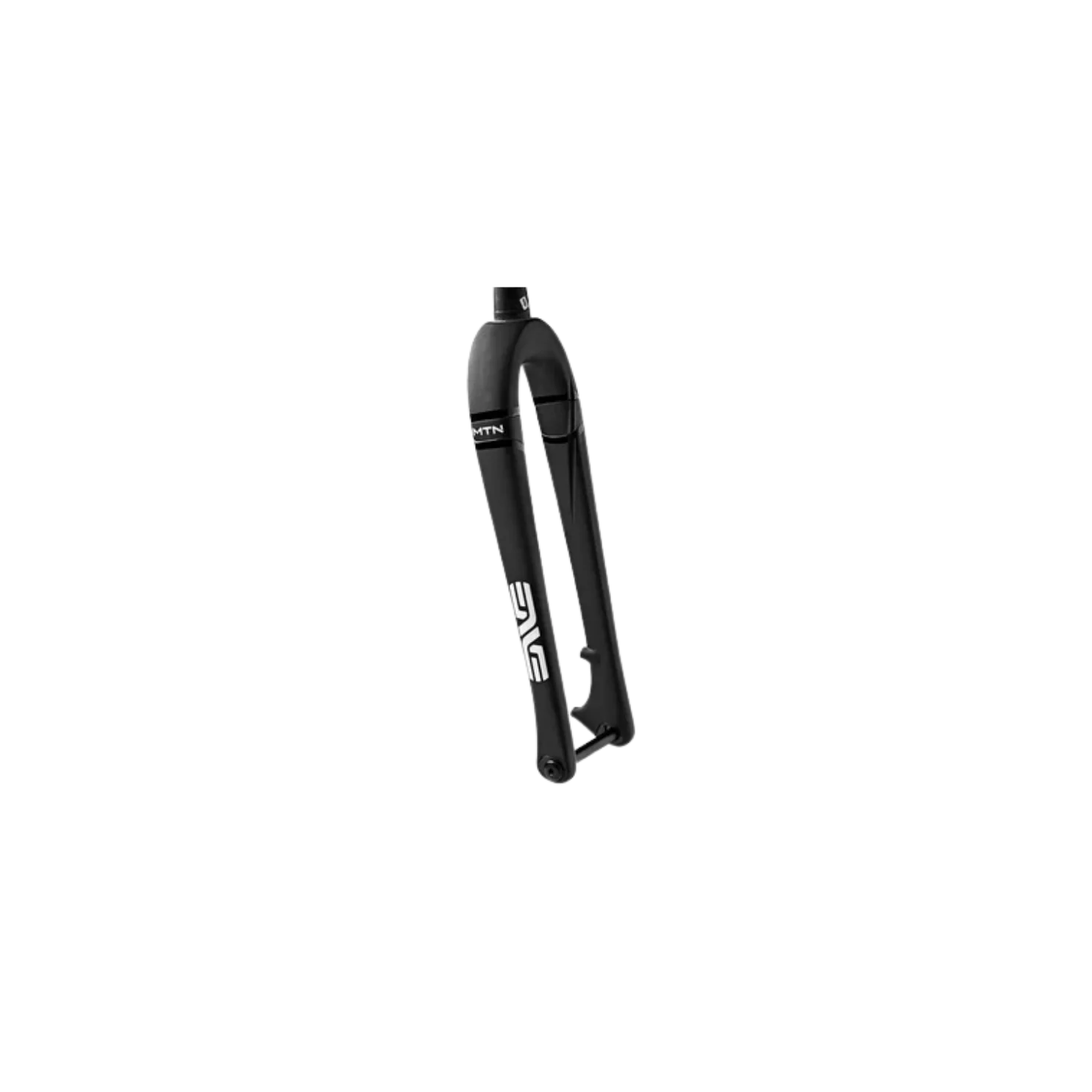

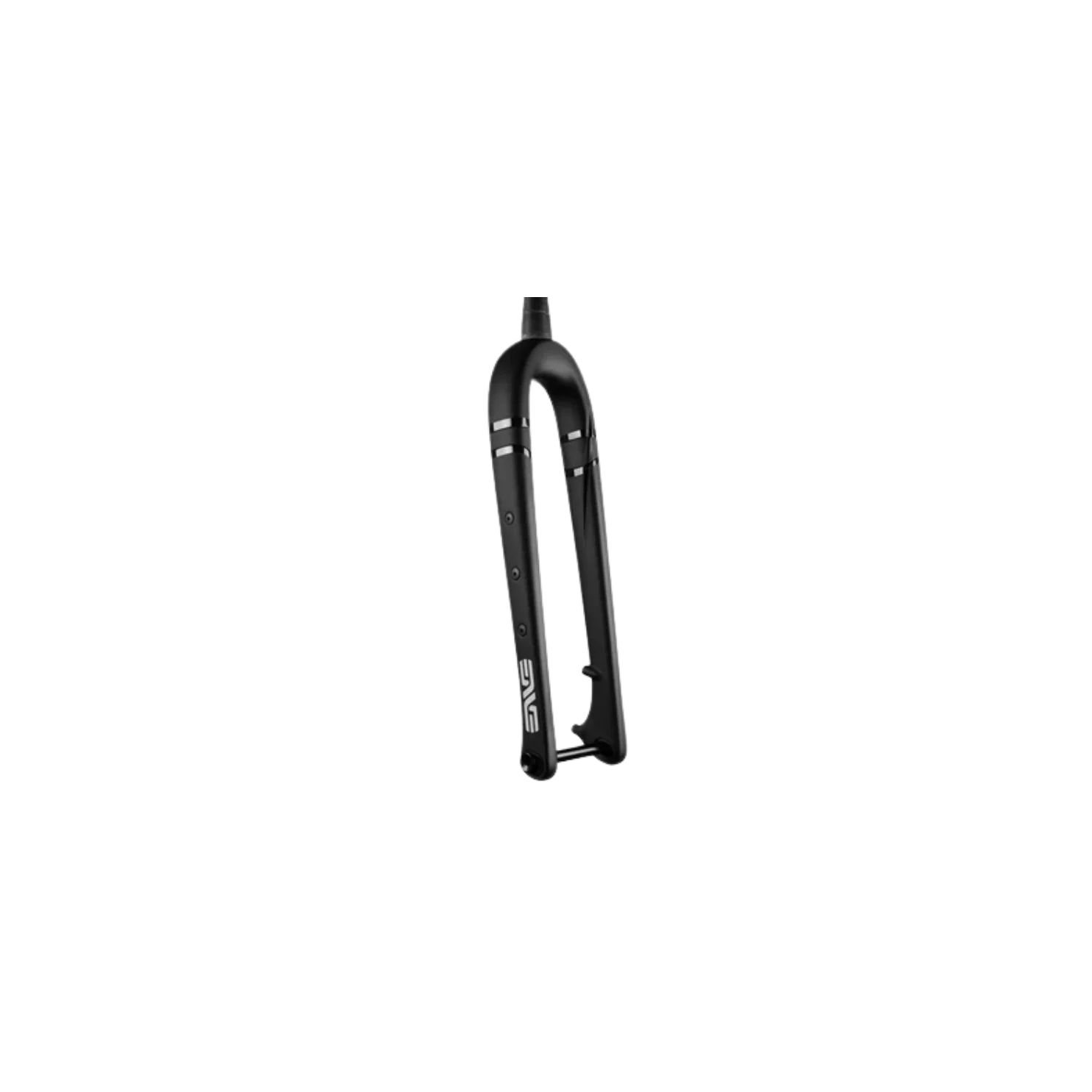

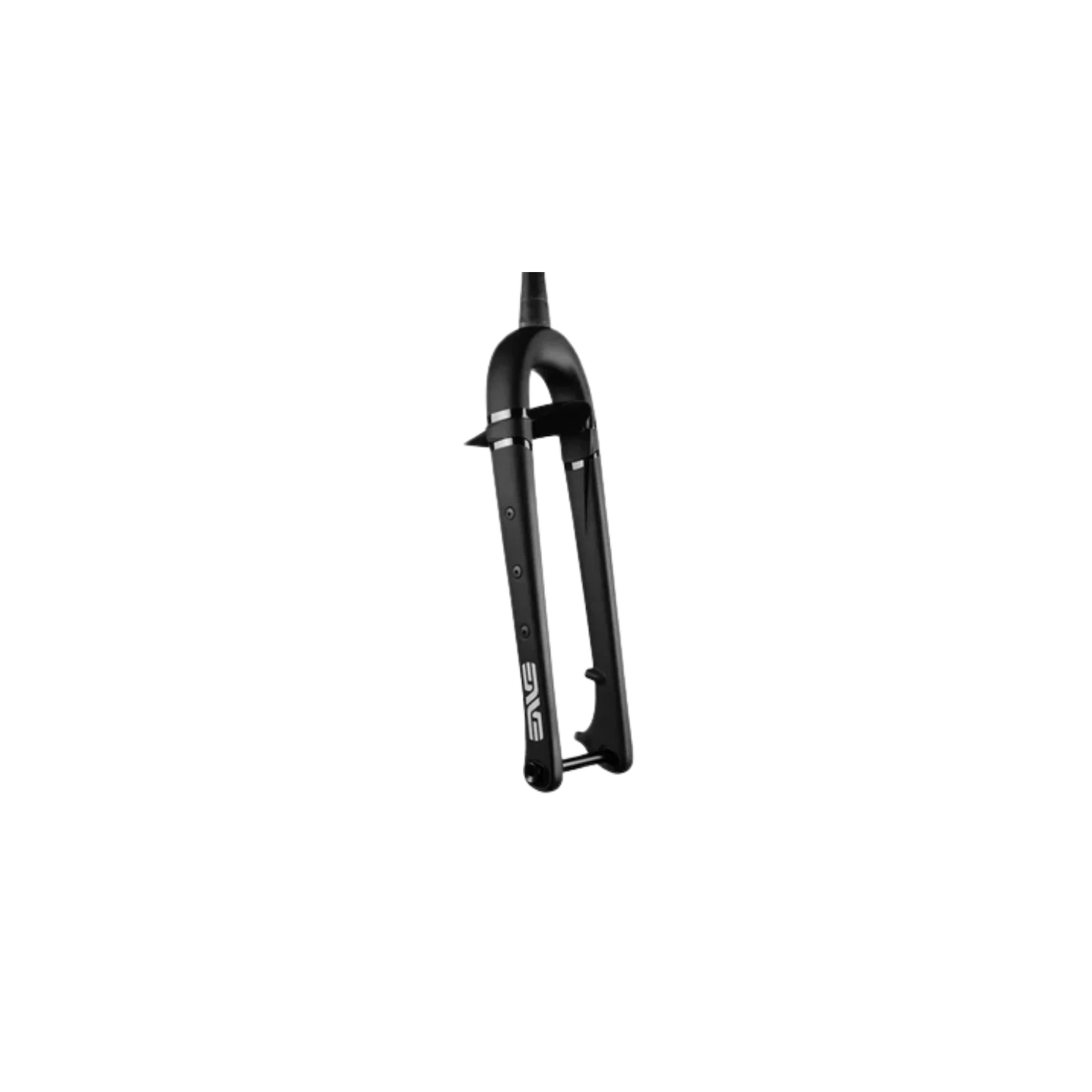

ENVE Mountain Fork

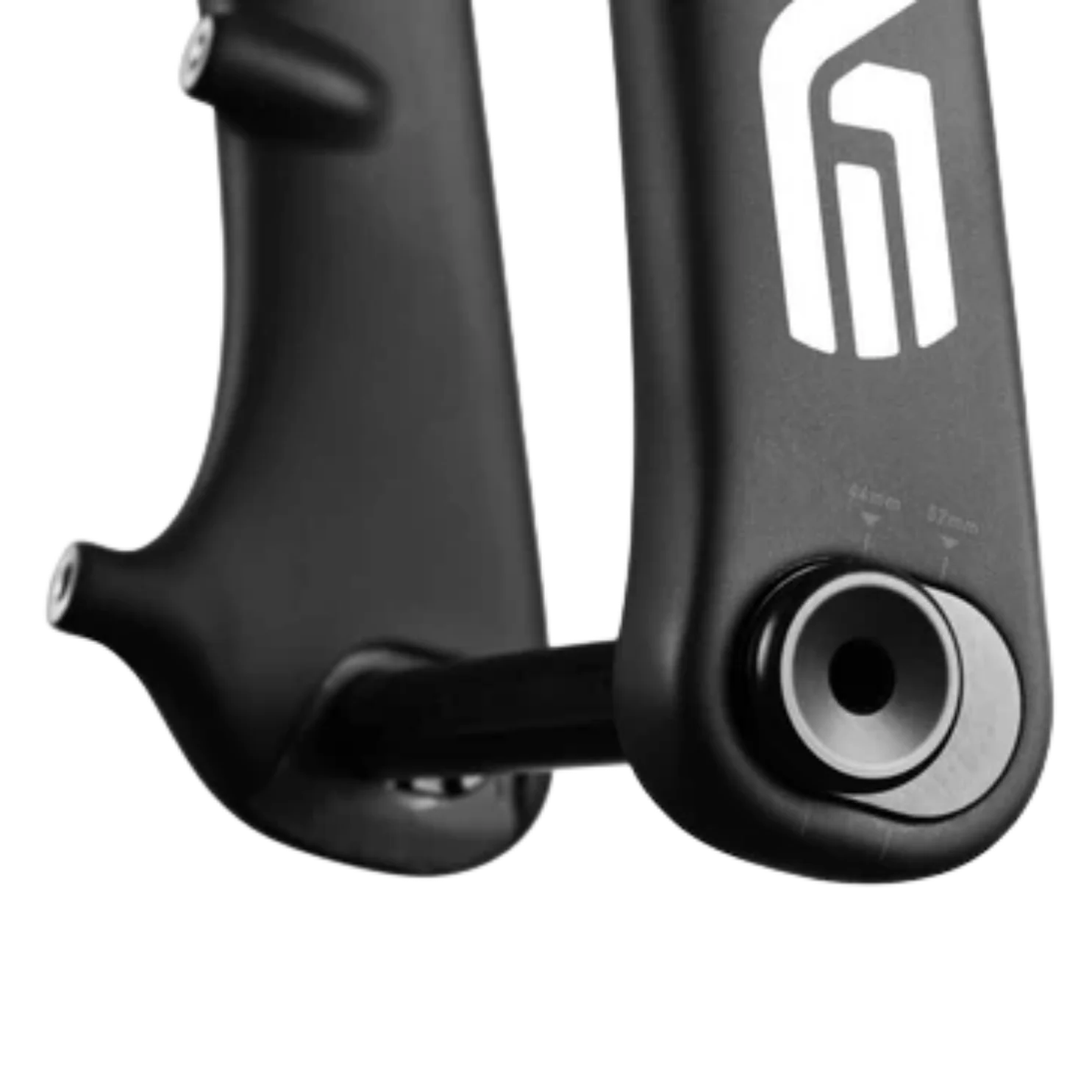

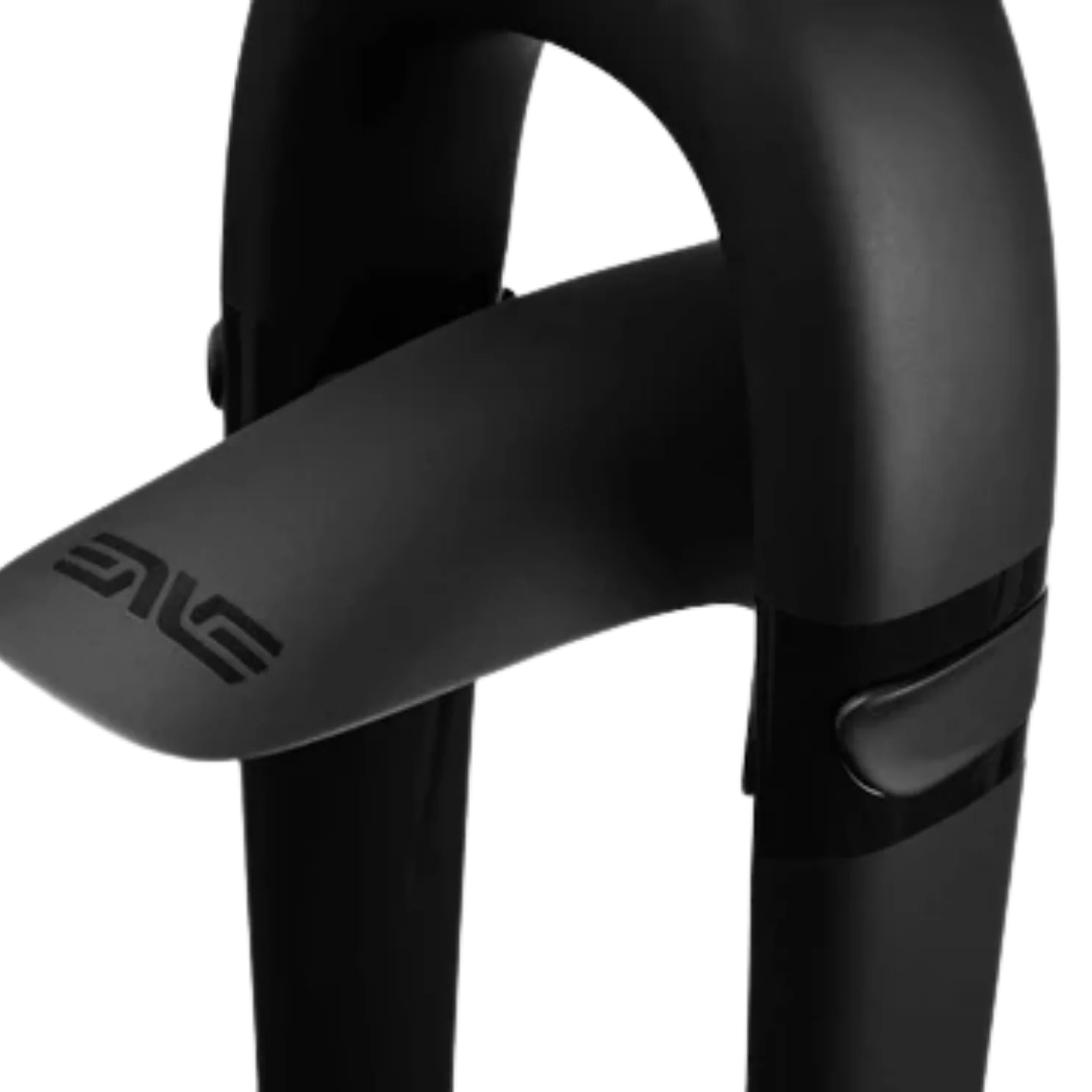

The trusted fork for those who have decided to forgo suspension in favor of a lightweight, rigid mountain bike setup. With over a decade’s worth of carbon expertise baked-in, the ENVE Mountain Fork gains boosted axle compatibility, updated geometry for modern hardtail frames, and mounts for all your accessories. Like its predecessor, the updated ENVE Mountain Fork features reversible drop-out flip-chips to tune the handling characteristics of your bike to your liking, while an integrated-but-removable fender helps keep mud and water off your face.

With more than a decade’s worth of experience producing the most trusted and reliable carbon bicycle forks in the industry, we are committed to continually updating our fork offering to meet the needs of the modern cyclist. As such, the recently updated  ENVE Mountain Fork is loaded with technical features such as axle flip-chips that can be flipped to tune your ride’s handling characteristics, clearance for 3.0” wide tires, numerous accessory mounts, and a low profile removable fender. While many changes have been made to our flagship rigid mountain bike fork, its construction still utilizes a one-piece construction from the top of the steer tube to the bottom of the drop-outs and maintains the same strength to weight needed for attacking the trail both uphill and down.

Features
Offered in both Boost (110mm) and non-Boost (100mm) spacing
Suspension-corrected geometry
Blind bolts on fork arms act as placeholders when not using accessories; use bolts provided by the accessory manufacturer

Specifications
Options: Boost (15 x 110mm) / Non-Boost (15 x 100mm)
Material: Carbon
Accessory Mounts: Yes (Boost) / No (Non-Boost)
Travel Correction:
120mm (fits frames designed for 100–140mm forks) – Boost
100mm (fits frames designed for 80–120mm forks) – Non-Boost
Steerer Tube Length: 300mm
Steerer Tube Taper: 1.125" to 1.5"
Rake: Adjustable – 44mm / 52mm
Axle to Crown:
490mm (44mm rake) / 492mm (52mm rake) – Boost
470mm (44mm rake) / 472mm (52mm rake) – Non-Boost
Brake Type: Disc
Brake Mount: Post mount
Axle Compatibility: 15 x 110mm (Boost) / 15 x 100mm (Non-Boost)
Max Rotor Size: 180mm
Max Tire Clearance: 29 x 3.0” with fender
Torque Spec (Steerer Tube): 5.5Nm
Torque Spec (Axle): 8Nm

Mfr Claimed Weight
719g with fender, 676g (with clasps) – Boost
711g with fender, 686g (with clasps) – Non-Boost
