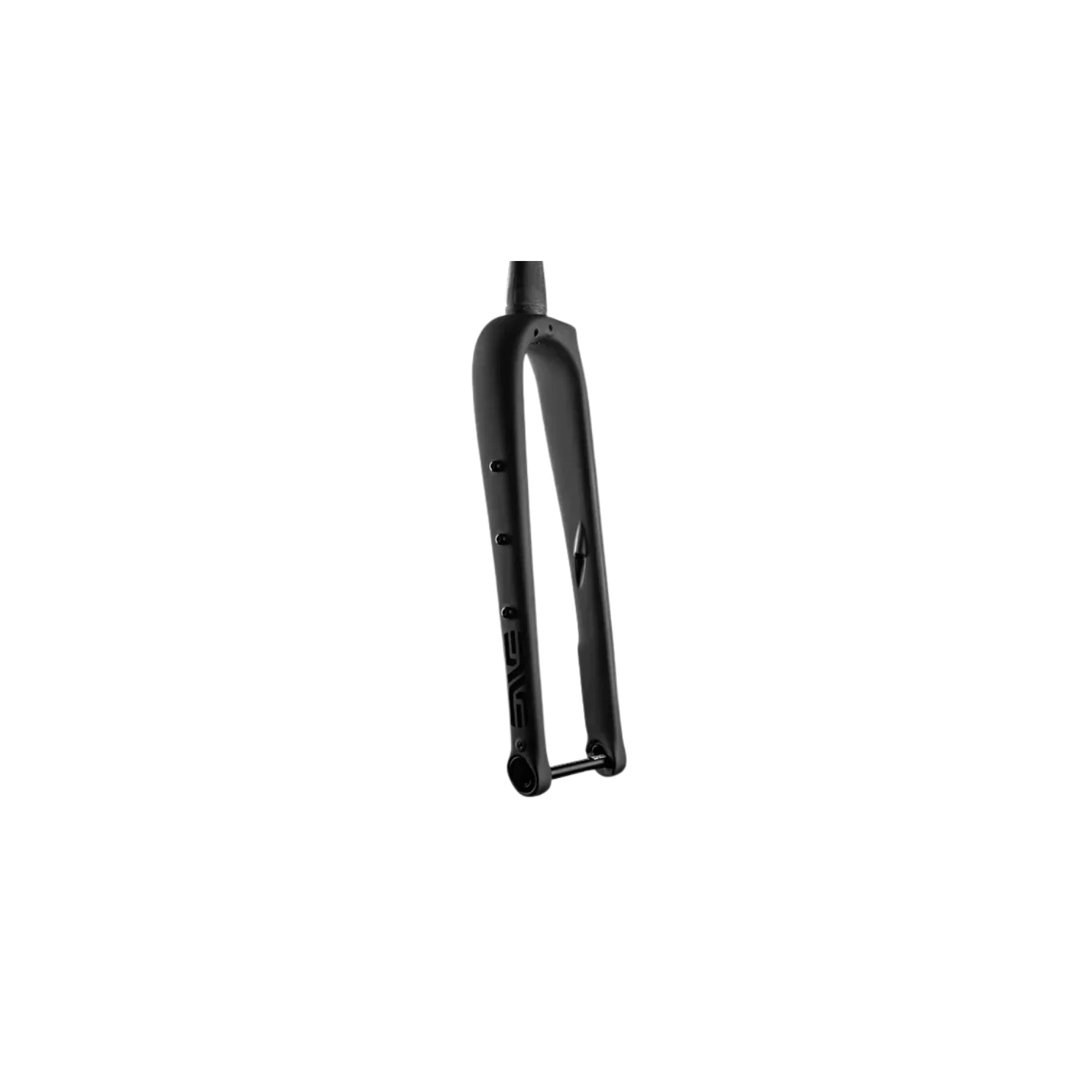

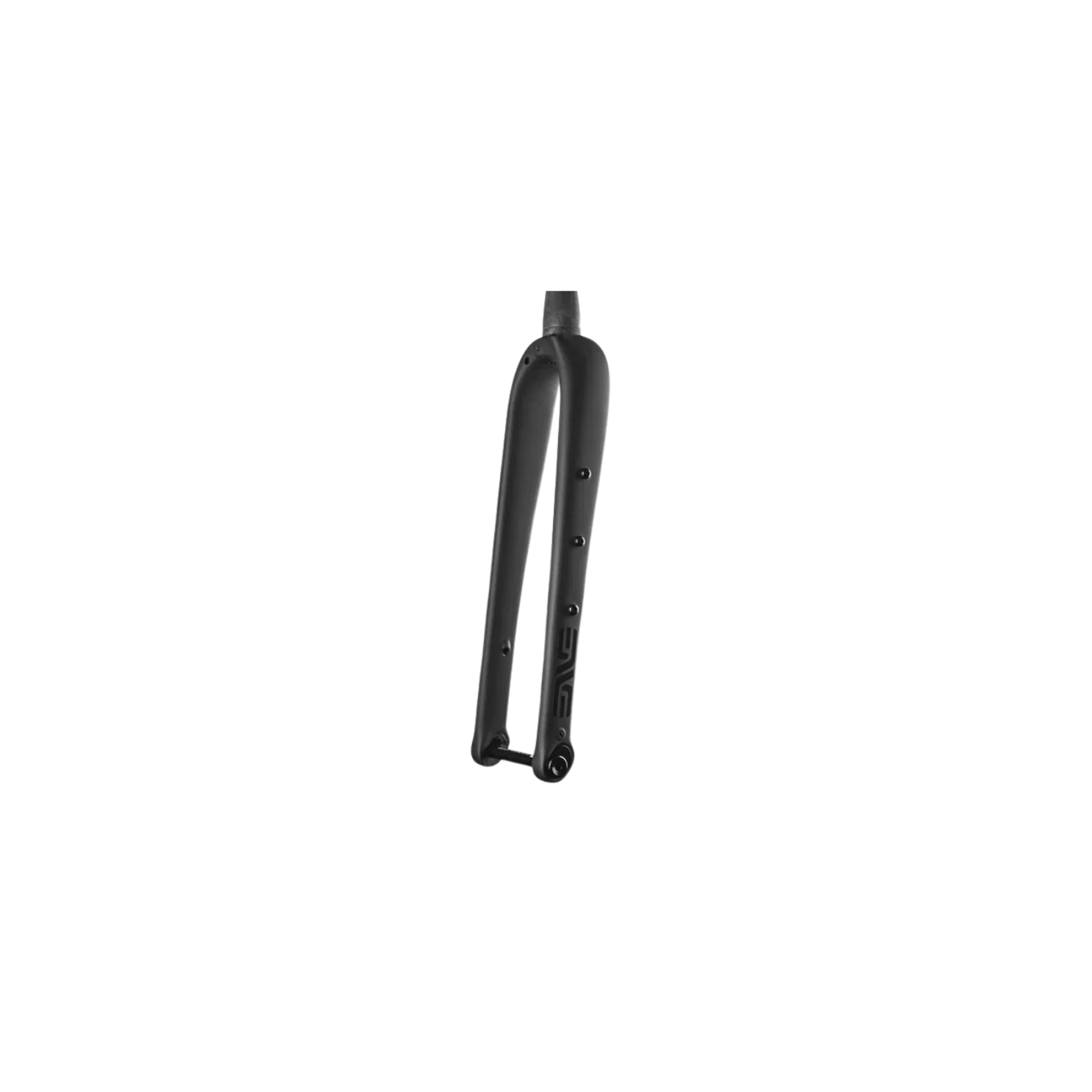

ENVE Adventure Fork

The ENVE Adventure fork provides a lighter weight option for bikepackers and frame builders, while still maintaining reliability and strength.

The dynamo light and charger routing is an integrated and protected solution to self-supported bike riders’ needs.

Finally, the fork chip option gives builders versatility in the fork by adjusting the axle-to-crown for different bike geometries for alternative bikepacking methods.

In a market that’s filled with heavy steel fork options, the ENVE Adventure fork offers bikepackers an opportunity to lighten their overall bike load through our trusted carbon fiber fork expertise.

Features

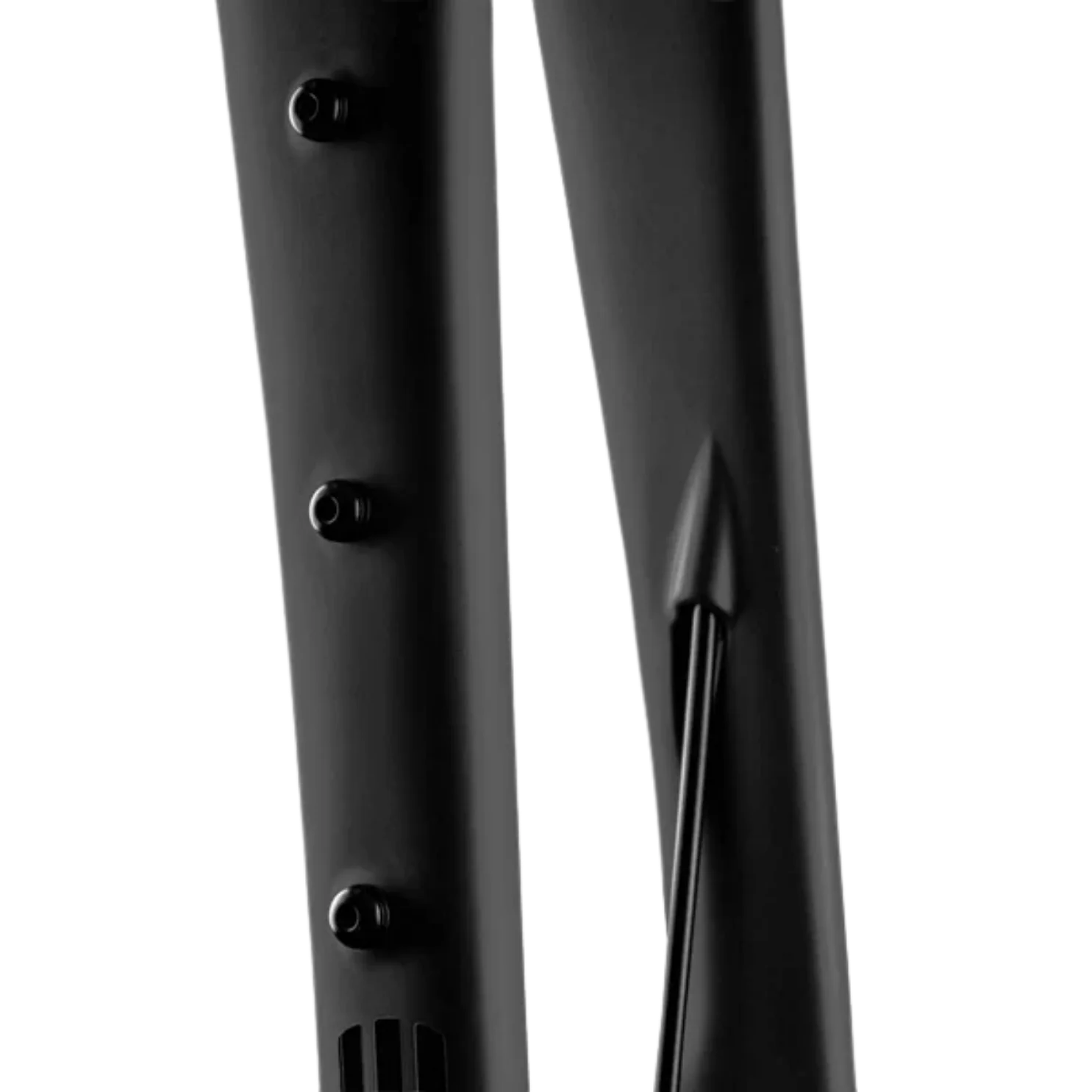

Three-Pack accessory mounts
Fender and rack mounts

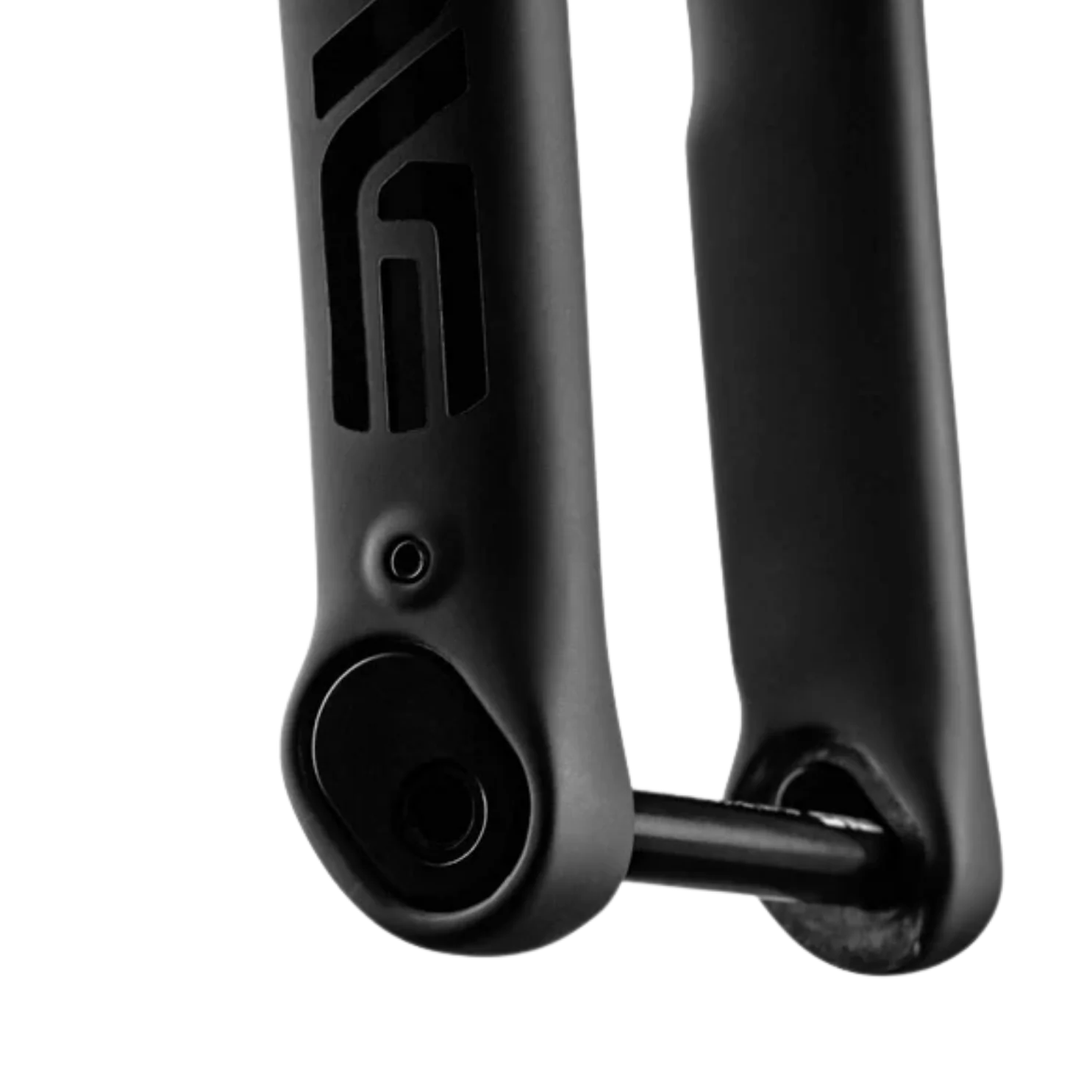

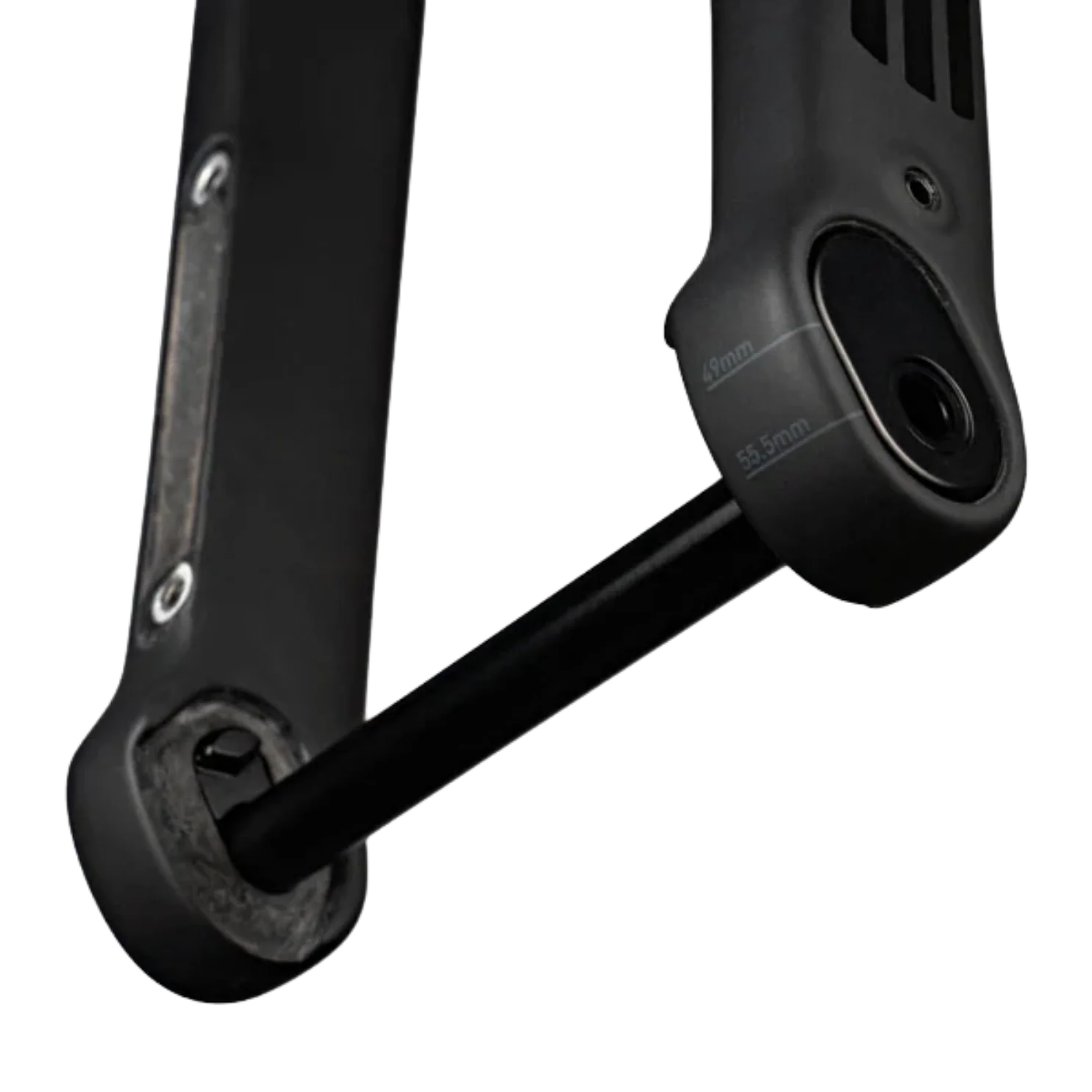

Reversible drop-out chips for adjustable axle-to-crown and rake
Internal dynamo routing for lights and electronics charging
Axle spacing: 12 x 100mm
Compatible rotor sizes: 140/160 (49mm rake), 160/180 (55.5mm rake)
Tire clearance: 700 x 53mm (49mm rake), 700 x 58mm (55.5mm rake)

Specifications
Material: Carbon
Accessory Mounts: Yes (M5 bolts)
Steerer Tube Length: 350mm
Steerer Tube Taper: 1.125" to 1.5"
Rake Options: 49mm / 55.5mm
Axle to Crown: 398mm (49mm) / 406mm (55.5mm)
Brake Type: Disc
Brake Mount: Flat mount
Low Mount Rack Capacity: 18kg (40lbs)
Front Mount Rack Capacity: 10kg (22lbs)
3-Pack Mount Capacity: 6kg per side (2kg per bolt)
Axle Compatibility: 12 x 100mm
Compatible Rotor Sizes: 140/160mm (49mm) / 160/180mm (55.5mm)
Max Tire Clearance:
29" x 2.1" (700x53) / 27.5" x 2.4" (49mm)
29" x 2.3" (700x58) / 27.5" x 2.6" (55.5mm)
Torque Spec (Steerer Tube): 5.5Nm
Torque Spec (Axle): 8Nm
Torque Spec (Brake Bolts): Refer to brake manufacturer
Torque Spec (Accessory Bolts): 2Nm

Mfr Claimed Weight
575g
