Cybrei DUB Axle Carbon Crank Assembly

One of the lightest carbon crank options on the market today. It has all the features in a crankset we look for including nice aesthetics, weight, stiffness and modularity. At a weight point we trust without going to certain extremes like carbon spindles.

Comes with the spindle. Builds up to a sub 500g crankset using the 110x4 bolt spider and also Cybrei's metarbon carbon chainrings.

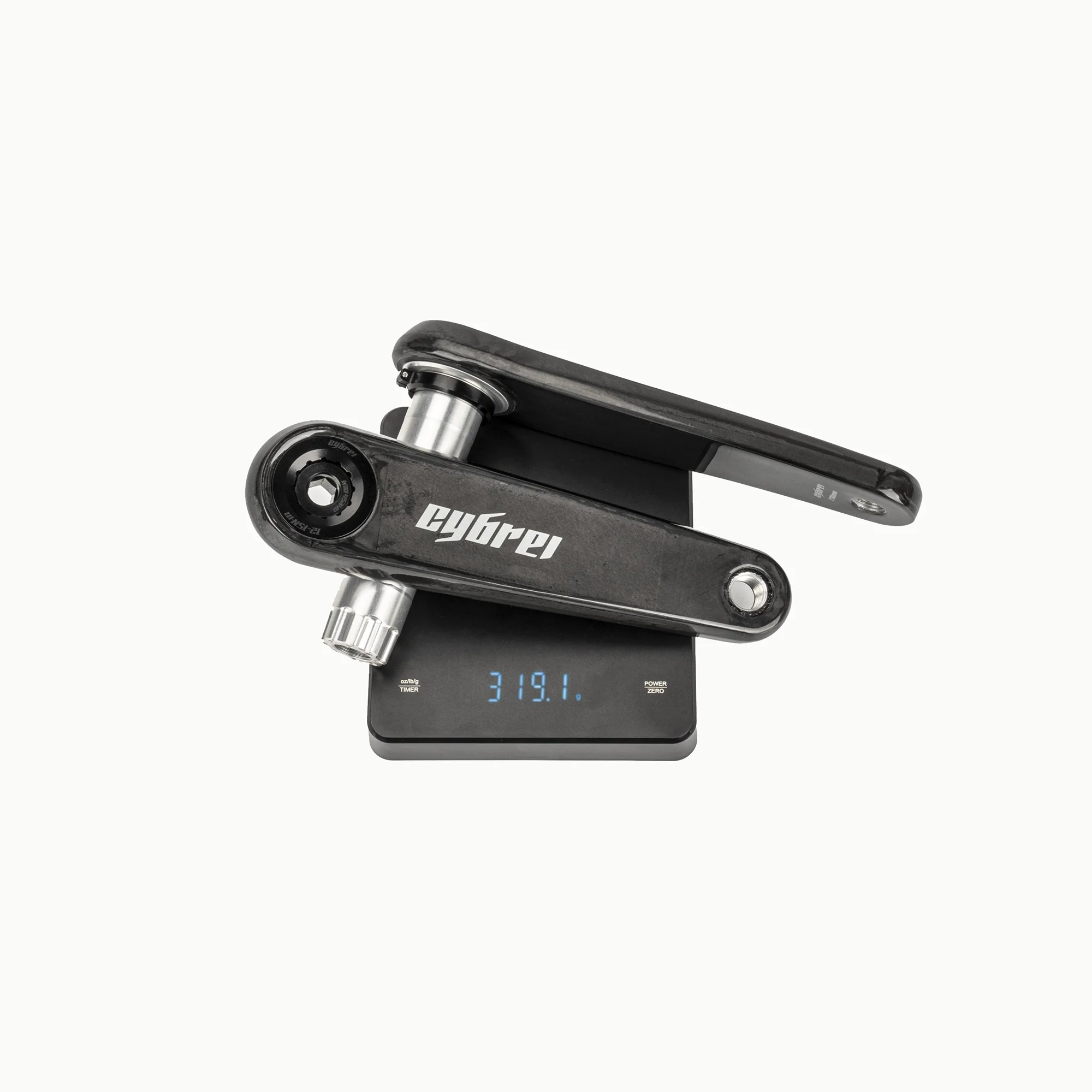

• Using Toray high modulus carbon fiber, crankset only 320g (170mm)
• Super high rigidity, the second generation of dual-channel technology improves crank rigidity by 12%
• Highly compatible 28.99mm axle, adaptable to more frames
• Cold forged 7075 aluminum alloy axle core brings unimaginable rigidity and durability
• Passed 1800N 14w crank fatigue test and 5600N crank damage test, far exceeding EU standards

SPECS

CYBREI ROAD CRANBON CRANKS
CRANK ARM LENGTH	162.5mm；165mm；167.5mm；170mm； 172.5mm； 175mm
SPEEDS	11s；12s
MATERIAL	High-mode carbon
SPINDLE SIZE	Width 92mm Diameter 28.99mm
BB COMPATIBILITY	All 28.99mm BBs
SPIDER INTERFACE	CYBREI 16T
CHAINLINE	CYBREI spider:44mm
Q FACTOR	148mm
WEIGHT	320g（170mm）
