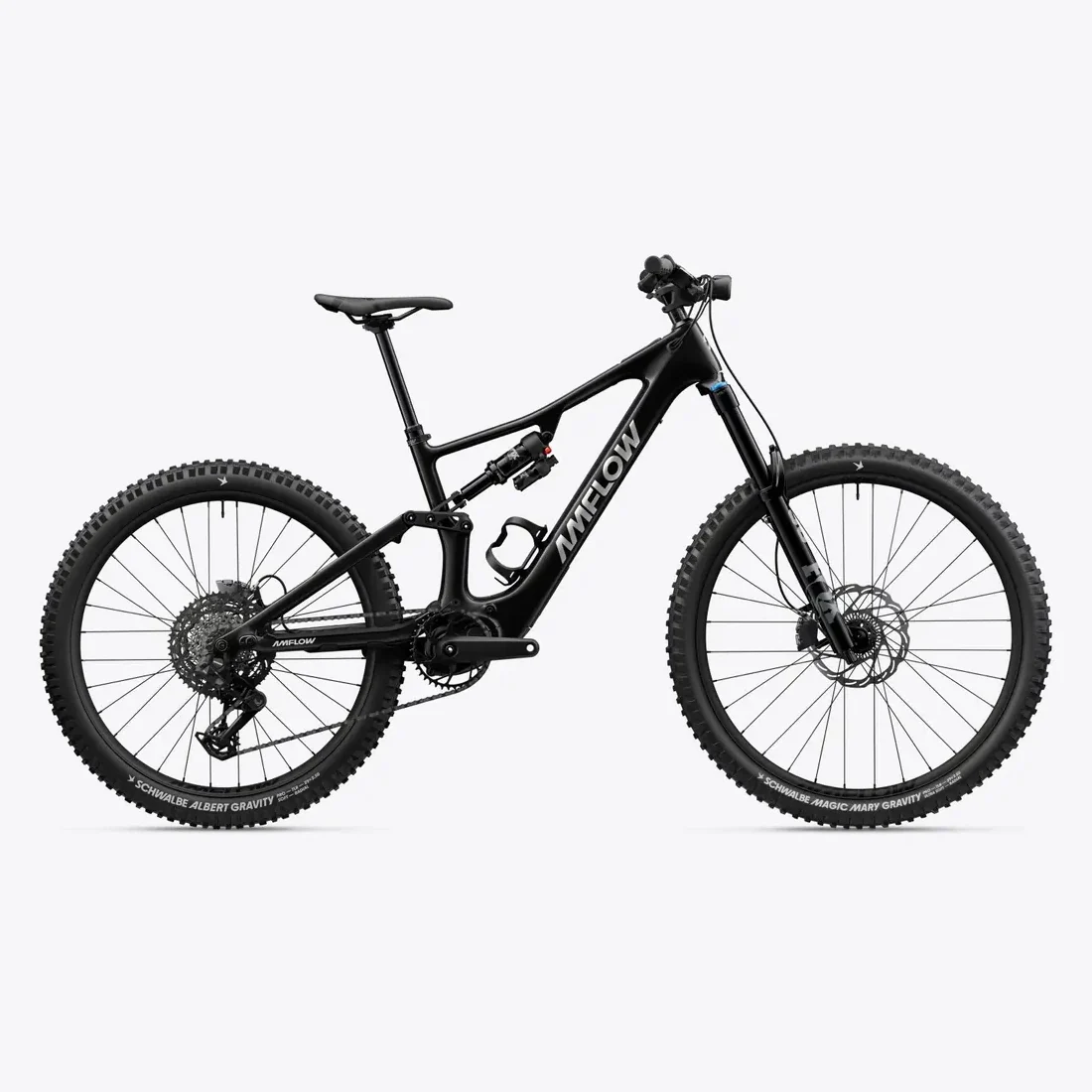

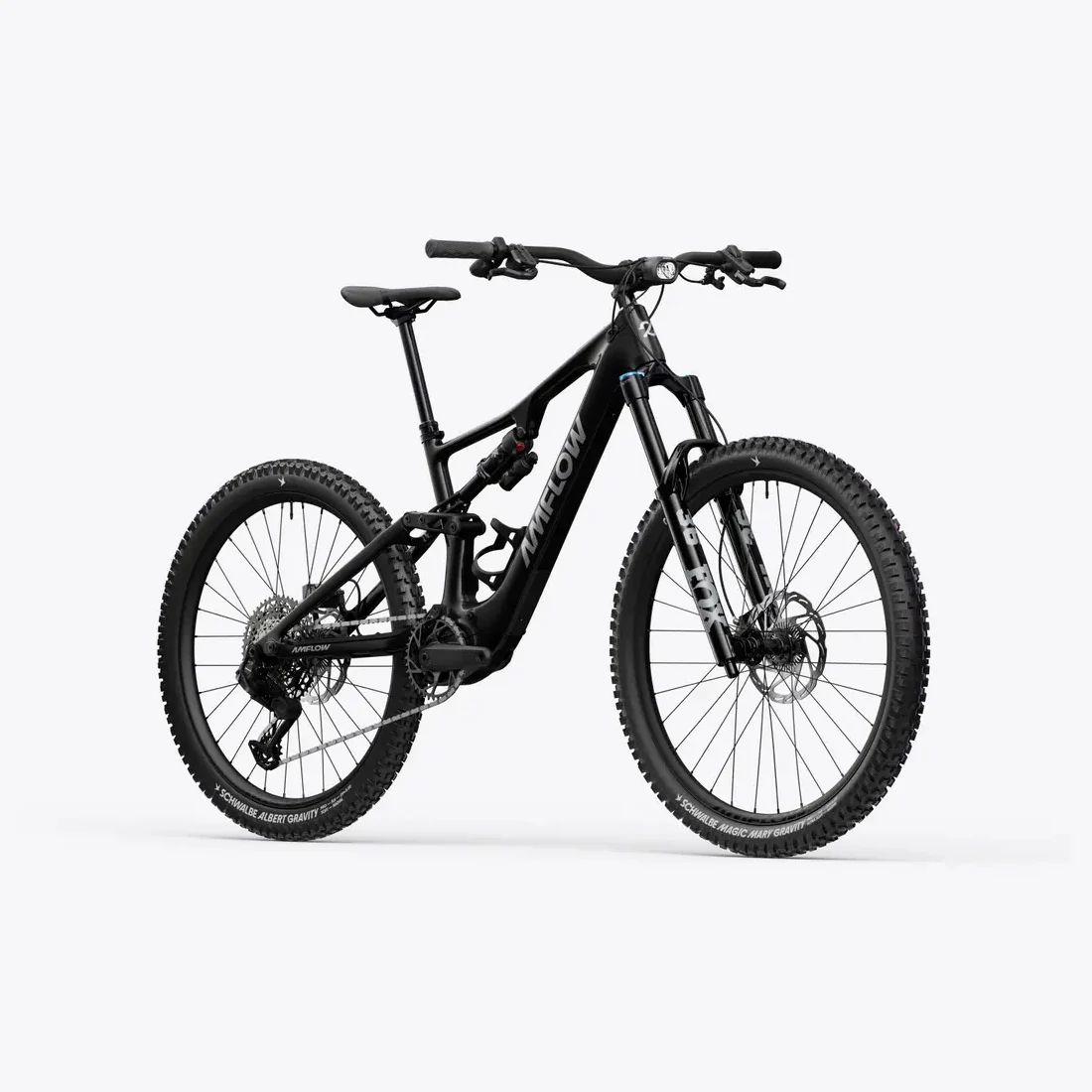

Amflow PX Carbon - Phantom Black

Precision. Power. Everyday Versatility.

The AMFLOW PX is built to redefine what an everyday eMTB can do. With its advanced carbon frame, fully integrated Avinox drive system, and highly adjustable geometry, it delivers a seamless balance of power, control, and comfort across any terrain.

Designed for riders who want reliability without compromise, the PX combines intelligent engineering with clean, modern aesthetics — making it as capable on technical trails as it is on long-distance rides.

---

Key Features

• Avinox M2S Motor — Up to 150Nm peak torque for powerful, responsive climbing
• 700Wh Integrated Battery — Long-range performance with fast 12A charging
• Adjustable Geometry System — Up to 40 configurations for a tailored ride feel
• FOX Performance Suspension — 160mm front / optimized rear for confident handling
• Mullet Wheel Setup (29” / 27.5”) — Stability up front, agility in the rear

---

Built for the Ride

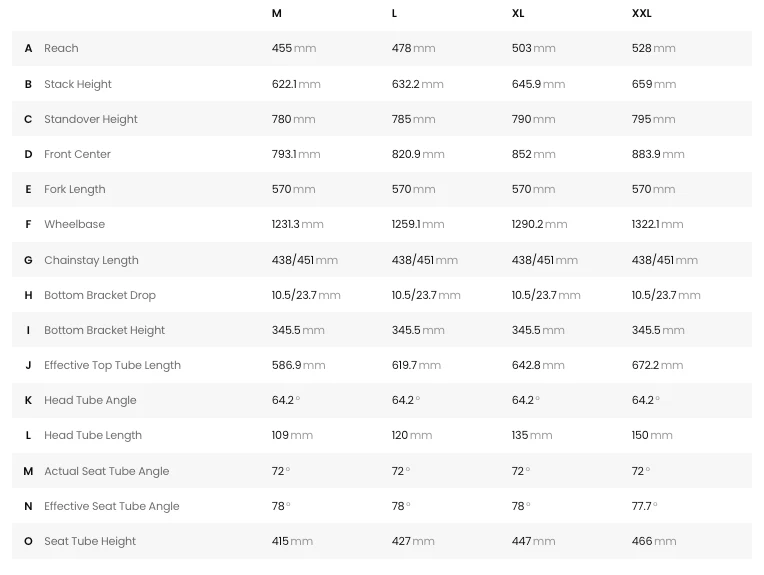

The PX is engineered to adapt. With adjustable head angle, chainstay length, and bottom bracket height, riders can fine-tune handling for stability, responsiveness, or all-day comfort.

---

Technical Specifications

• Frame: Carbon
• Motor: Avinox M2S (130Nm nominal / 150Nm peak)
• Battery: 700Wh integrated
• Fork: FOX 36 Performance (160mm)
• Rear Shock: FOX Float X Performance
• Drivetrain: SRAM S1000 Eagle Transmission
• Brakes: Magura Gustav Pro (4-piston)
• Wheelset: Alloy 29/27.5" Mullet
